Zhuozhou Tianpeng Imp. and Exp. Trade Co., Ltd. is one of the leading manufacturers and suppliers of centrifuge extractor in China. With abundant experience, we warmly welcome you to buy customized centrifuge extractor made in China here from our factory. Quality products and reasonable price are available.
Description of Product

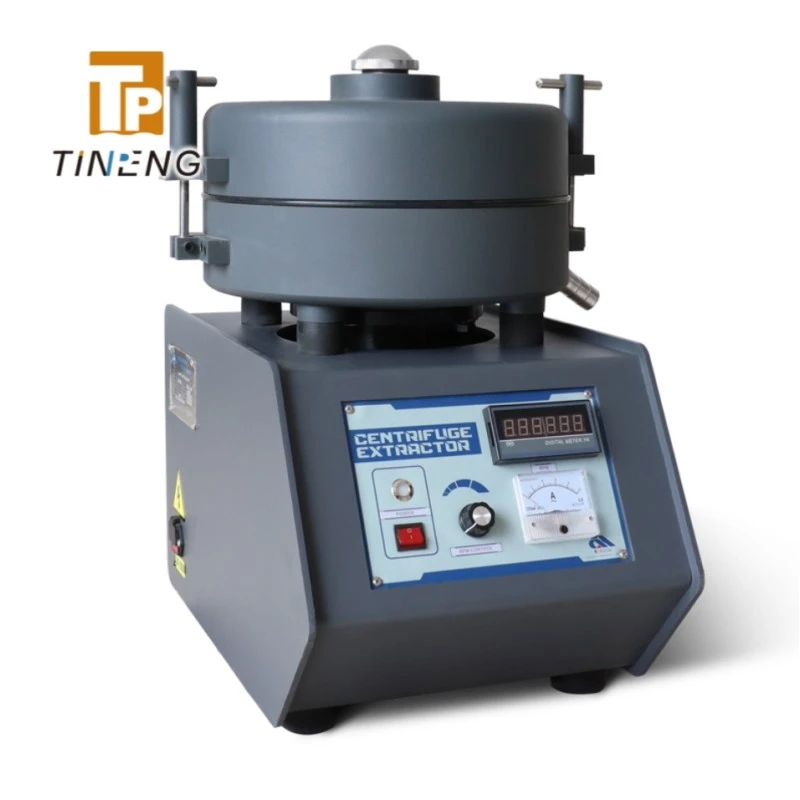

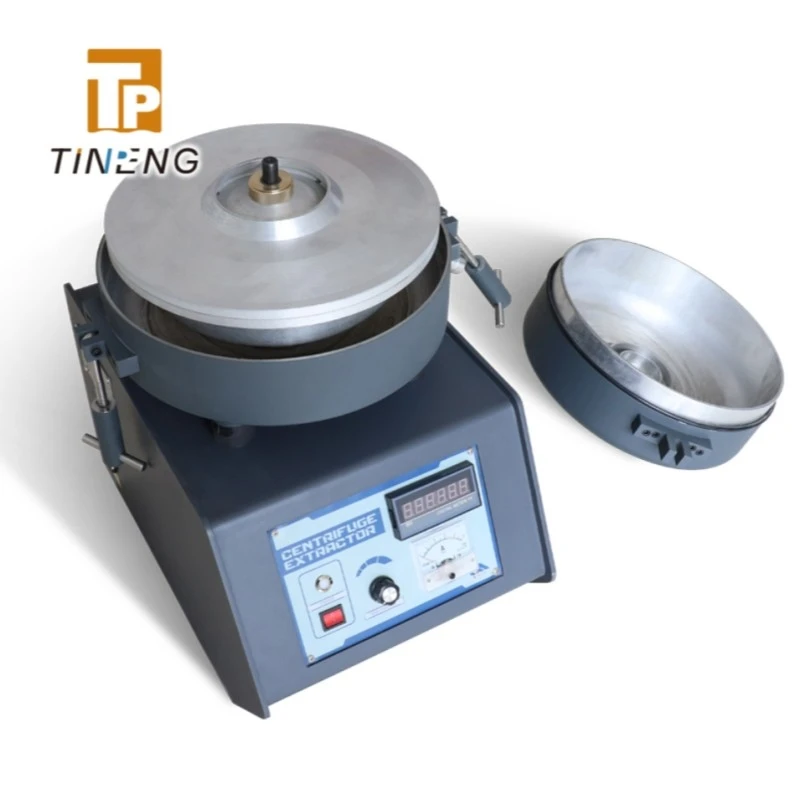

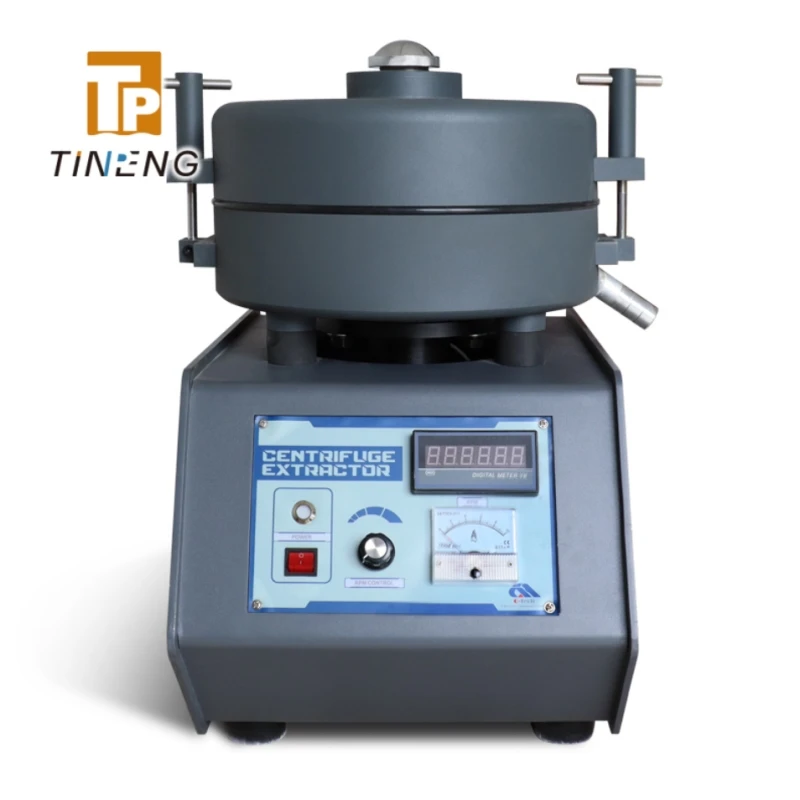

These centrifuges determine the bitumen percentage in bituminous mixtures. Each unit consists of a removable precision-machined rotor bowl housed in a cylindrical aluminum box. The rotating assembly is suspended on four calibrated springs, providing excellent stability during testing. The precisely machined cover features a solvent-resistant gasket to eliminate leakage. A hand brake system is fitted on all models for emergency use. The control panel includes start/stop button and speed control knob for easy operation.
Standards
- EN 12697-1 CLAUSE B.1.5
- ASTM D2172
- AASHTO T164A
Specification
TECHNICAL PARAMETERS
|
Voltage |
220 v±10V |
|
Rotating speed |
3600r/min |
|
Power |
370 w-550 w |
|
Max. weight of specimen |
3000g(1500g optional) |
|
Filter paper |
pack of 10 |
|
Overall dimension |
dia. 350mm x 526mm height |
|
Net weight |
70kg |
Features
● Operates at 220V ±10V with adjustable power ranging from 370W to 550W. Rotating speed reaches 3600r/min for efficient solvent extraction.
● Accommodates specimen weights up to 3000g (1500g optional version available). Comes with filter papers for immediate use.
● Compact design with dimensions of 350mm diameter and 526mm height. Net weight of 70kg ensures stable operation.
● Precision-machined rotor bowl and calibrated spring suspension system maintain stability throughout the test. Solvent-resistant gasket prevents leakage during operation.
● Hand brake system included for emergency situations. Simple control panel with start/stop button and speed control knob for easy operation.
