Description of Product

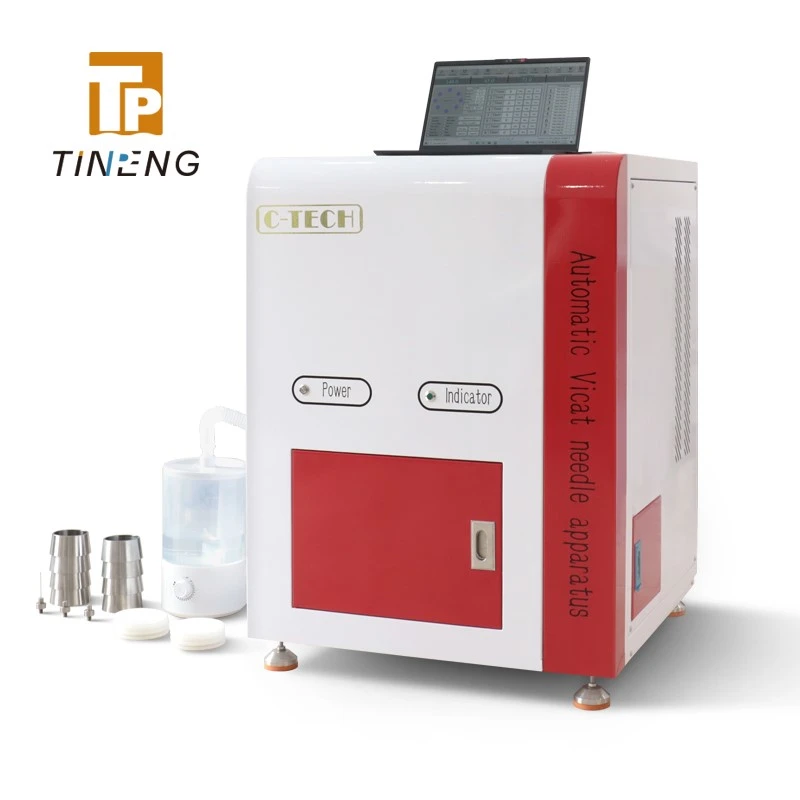

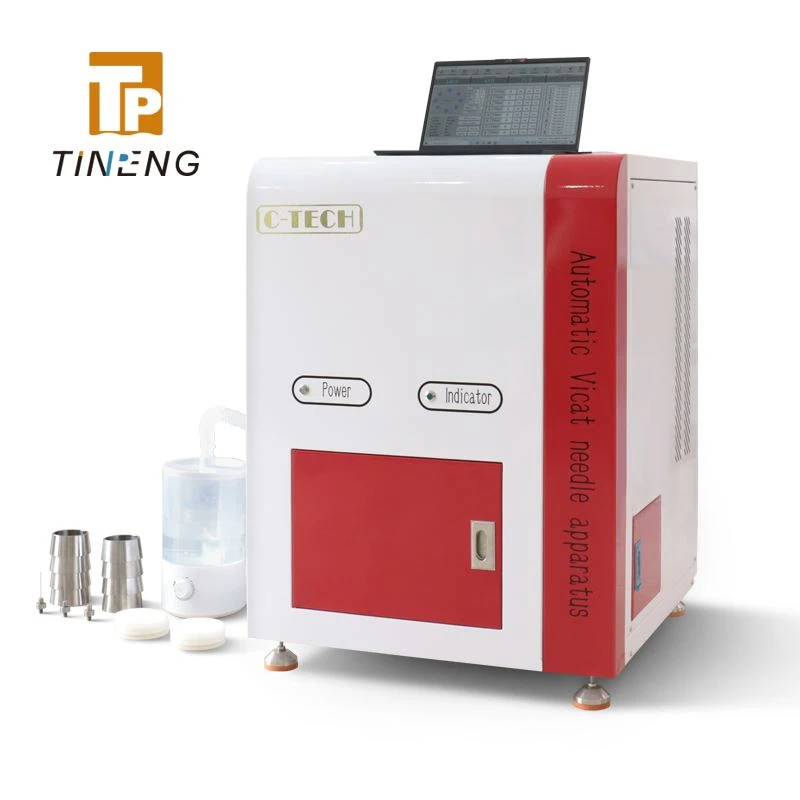

The TPVN-8 Automatic Vicat Needle Apparatus is an automated instrument designed to measure cement setting time. Equipped with eight test stations, it simulates manual Vicat testing procedures to conduct cement setting tests automatically. Once the test starts, no human operation is required throughout the whole process. This device can fully substitute manual test operations and also integrates the capabilities of a thermostatic and humidifying chamber.
Standards
- ISO 9597
Specification
| Item | Specification |
|---|---|
| Linear displacement measurement accuracy | ≤50μm |
| Initial setting time accuracy | ±15 minutes |
| Final setting time accuracy | ±45 minutes |
| Measuring position | 8 |
| Slide assembly weight | 300g±1g, including test rod and needle |

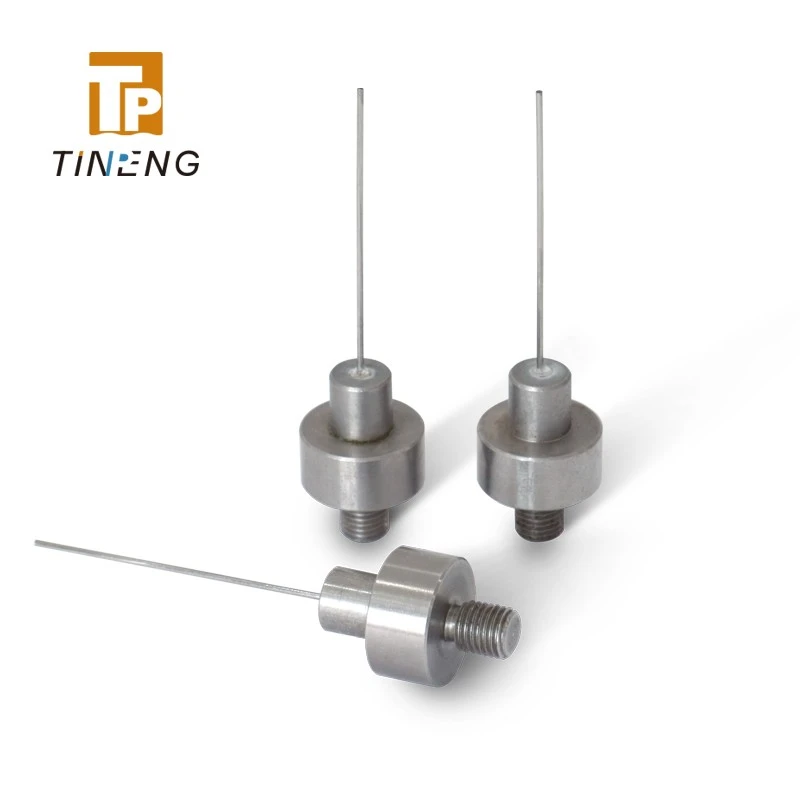

| Effective length of test needle | 70±1mm, diameter: 1.13±0.05mm |

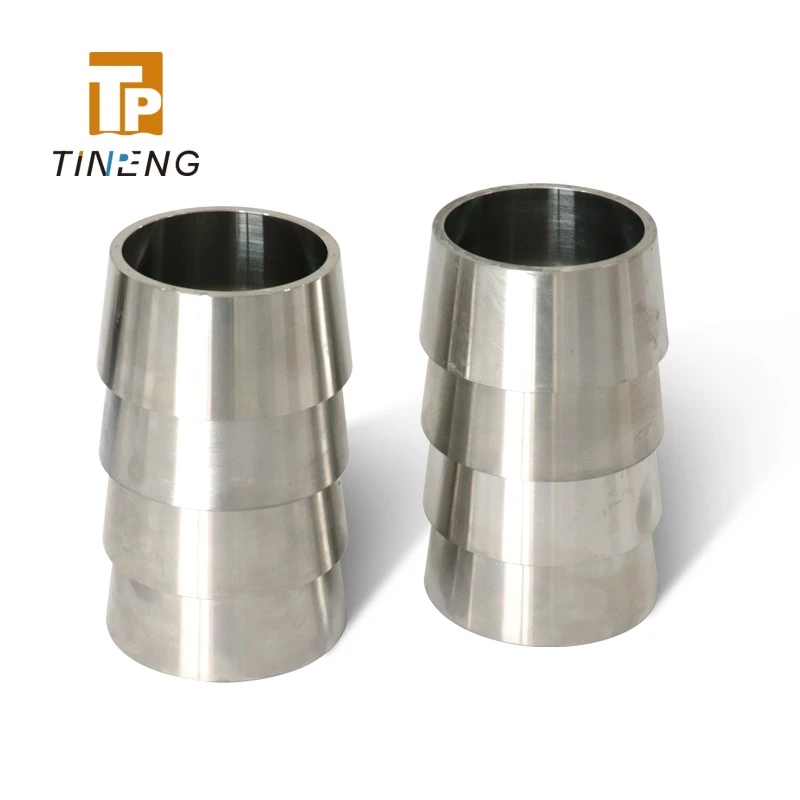

| Vicat mould | Φ65±0.5mm×Φ75±0.5mm×40±0.2mm |
| Ambient temperature | 20±1℃ |
| Test chamber humidity | ≥90% |
| Power | Motor: DC24V, 30W; Cooling: DC frequency conversion 24V/120W; Heating: 100W; Humidifying: 25W; Water pump: 220V, 15W |
| Power supply | 220V 50Hz |
Features
- Fully automated testing operation without manual human intervention throughout the whole measuring cycle.
- Multiple robust reliability mechanisms deliver comprehensive safeguard for test needles, alongside an automatic cleaning function.
- Advanced technology is deployed to capture needle displacement with precision up to ≤50μm. It eliminates reading deviations caused by manual operation and automatically detects cement end surfaces to minimize testing inaccuracies.

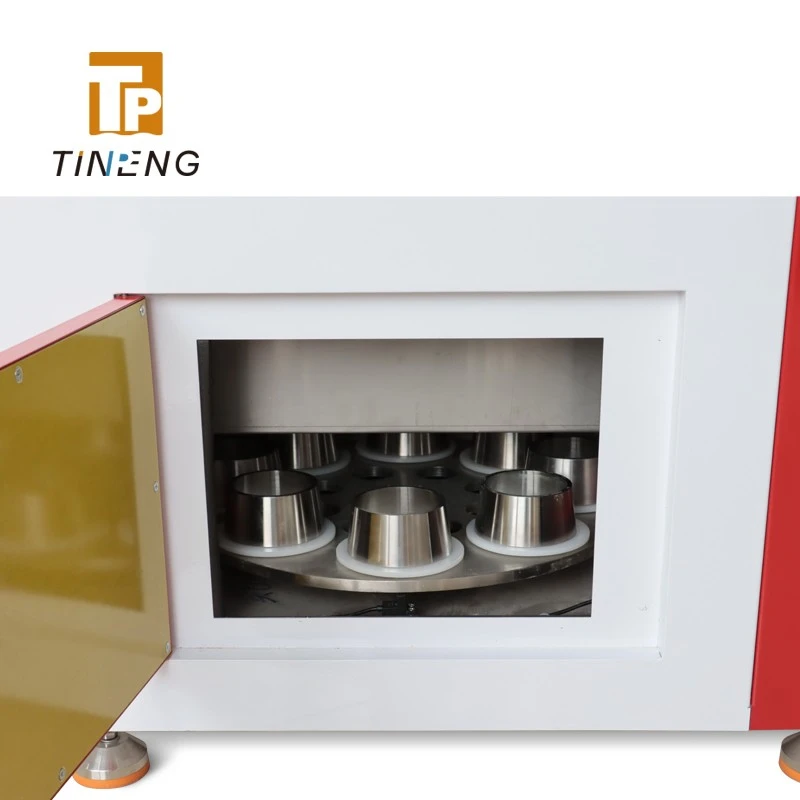

- Supports simultaneous testing of as many as 8 independent specimens. You can load new samples anytime during the running test.
- The supporting software offers real-time visualization of every specimen's working status and the location of measuring holes.
- Built-in thermostatic & humidified curing chamber maintains stable curing environment: humidity ≥90% and temperature controlled at 20±1°C.
