Description of Product

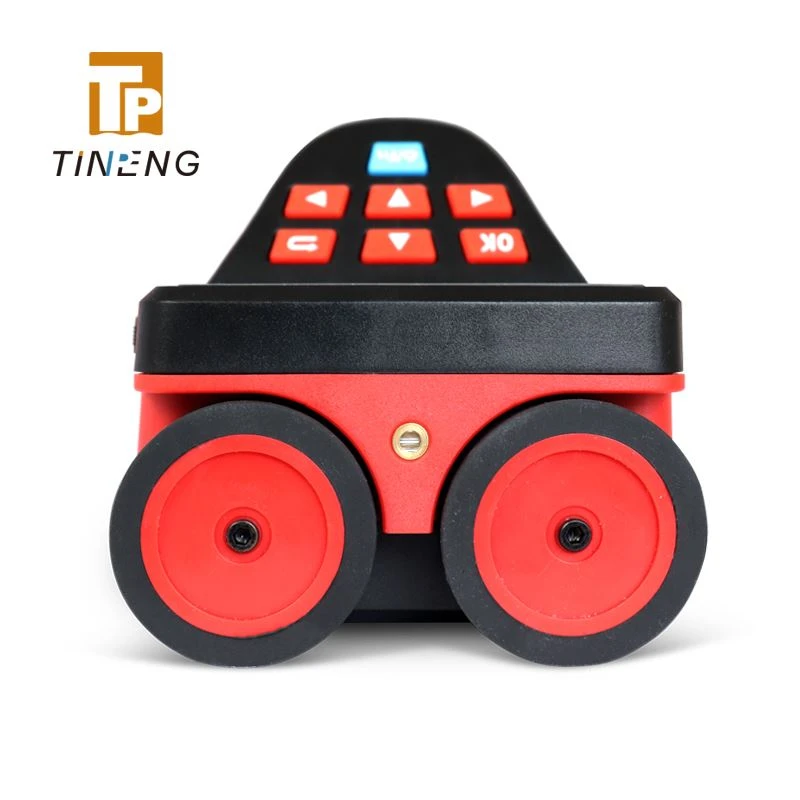

The rebar scanner TP-200g is a portable non-destructive testing (NDT) instrument designed for evaluating reinforced concrete structures. It accurately detects rebar position, distribution, orientation, protective layer thickness and rebar diameter within concrete elements. Widely used in urban construction projects including real estate, highways, bridges and engineering construction supervision.
Specification
TECHNICAL PARAMETERS
|
Diameter range |
6-50 mm |
|
Diameter estimation display accuracy |
0.1 |
|
Protective layer measuring range |
2-200 mm |
|
Data transmission mode |
Bluetooth or USB |
|
Screen size |
2.8 inch |
|
Power supply mode |
Lithium battery |
|
Host size |
220×96×108 mm |
|
Host weight |
0.65 kg |
Features
- Compact and stylish design with lightweight construction for easy portability
- Integrated host and sensor design enables convenient and quick one-hand operation
- Waveform scanning mode displays rebar distribution intuitively, ideal for detecting and analyzing dense rebar arrangements
- Thickness detection mode automatically stores cover thickness and spacing data, significantly improving inspection efficiency
- Detects position between two rebars with indicator light clearly showing rebar locations
- Large internal memory supports storing, viewing and deleting test data as needed
- USB and Bluetooth data transmission options allow easy upload of stored data to computer
