Description of Product

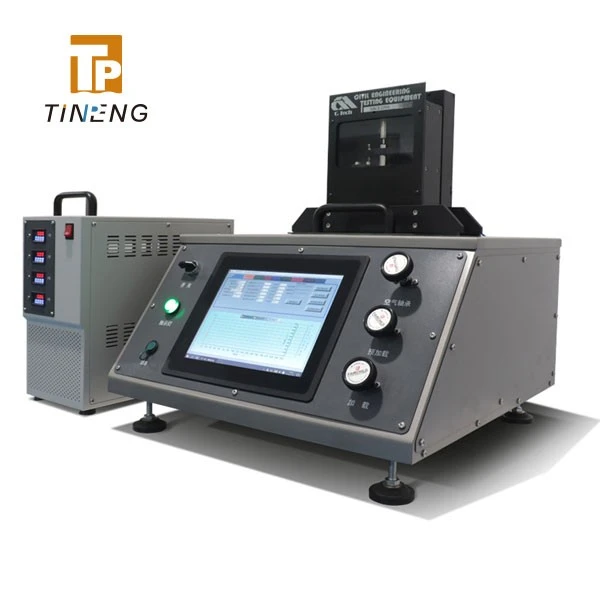

The Bending Beam Rheometer BBR-1 is designed to measure the low-temperature flexural creep stiffness of asphalt binders. It evaluates the material's resistance to low-temperature cracking by determining creep stiffness S(t) and creep stiffness change rate m(t).
Standards
- AASHTO T313
- ASTM D6648
-
EN 14771
- AASHTO TP112
Specification
TECHNICAL PARAMETERS
|
Displacement sensor range |
0~10mm |
|
Displacement sensor resolution Pressure sensor range |
5μm 0~4900mN |
|
Pressure sensor resolution |
2mN |
|
Temperature sensor range |
-50℃~ room temperature |
|
Temperature sensor accuracy |
±0.1℃ |
|
Liquid bath temperature range |
-40℃~ room temperature |
|
Temperature control accuracy |
±0.1℃ |
|
Liquid bath capacity |
5L |
|
Stirrer speed |
25rpm |
|
Mould size |
127x12.7x6.35mm |
|
Top radius of sample support |
3±0.3mm |
|
Loading shaft radius |
6.3±1.3mm spherical contact point |
|
Number of samples |
1 |
|
Creep stiffness range |
20~1000MPa |
|
Data output |
USB port |
|
Power |
Host AC220V 1kW; power box AC220V 1.8kW; chiller AC220V 3kW |
|
Host dimensions |
610x610x620mm |
|
Host weight |
80kg |
Features
● Built with an automatic digital counting device that accurately displays Industrial panel computer controls and displays the system, providing real-time deformation, pressure and temperature curves
● Equipped with LVDT calibration device for simple and convenient calibration procedures
● Composite cooling system combines Peltier and chiller technology for rapid temperature reduction; cools from room temperature to -18°C in just 40 minutes with high accuracy
● Chiller connects to host via hose and is placed separately to prevent vibration interference with test results
● Magnetic stirrer with adjustable speed installed in liquid bath ensures uniform temperature distribution
● Air source pressure, pre-pressure, load pressure and air bearing pressure all digitally displayed in software
● USB communication port enables convenient data export
● Overload protection and fault warning functions with buzzer alarm and fault code display
