Description of Product

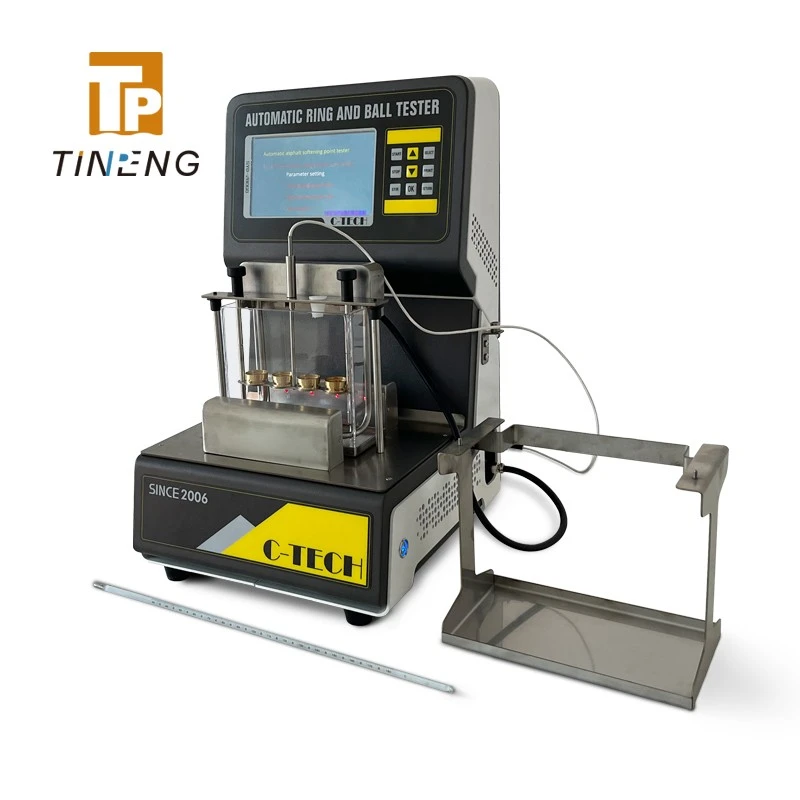

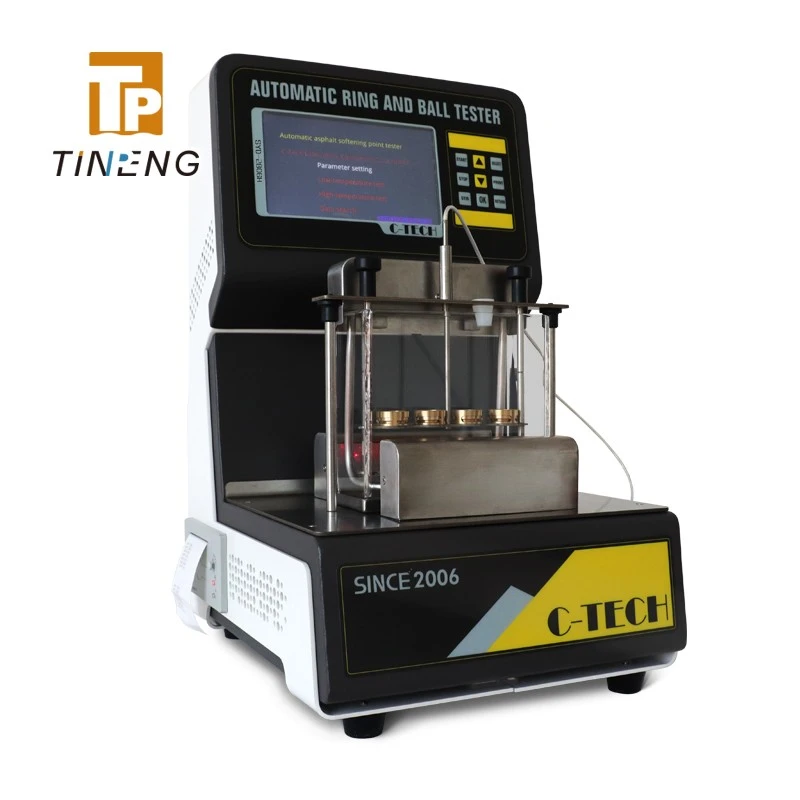

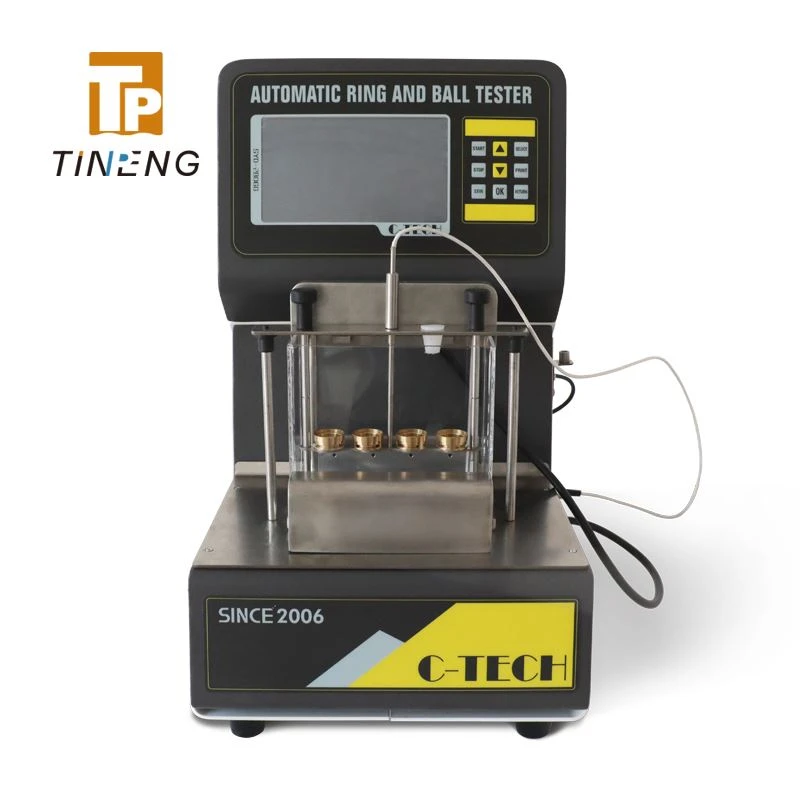

This apparatus is designed to determine the softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt and various other asphalt materials. It is widely used by asphalt manufacturing companies, highway and bridge construction firms, universities and scientific research institutions.
Standards
ASTM D36
Specification
TECHNICAL PARAMETERS
|
Heating power |
0.6kw |
|
Steel ball weight |
3.5±0.05g |
|
Heating range |
0~90℃ (water) 32~180℃ (glycerin) |
|
Heating rate |
5±0.5℃/min |
|
Temperature resolution |
0.1℃ |
|
Steel ball diameter |
9.53mm |
|
Drop height |
25.4mm |
|
Test position |
4 |
|
Power supply |
AC(220±10%)V |
|
Frequency |
50Hz |
|
Dimensions |
296×339×483mm |
|
Working conditions |
Ambient temperature 5~35℃, relative humidity ≤85% |
Features
● Built with an automatic digital counting device that accurately displays Heating rate is precisely controlled by a single-chip microcomputer at 5±0.5℃/min for accurate and consistent testing
● Magnetic stirring system with continuously adjustable speed ensures uniform heating throughout the test
● Laser falling ball receiving module automatically detects and records
● Records data every 5 seconds and supports USB export in Excel format
● Process data can be automatically printed after test completion
● Over-temperature, over-pressure and high-pressure relief protection ensure safe operation under high-temperature and high-pressure conditions
● Overload protection and fault warning functions with buzzer alarm and fault code display
● Stainless steel cabinet with special surface treatment, easy to clean and durable
