Description of Product

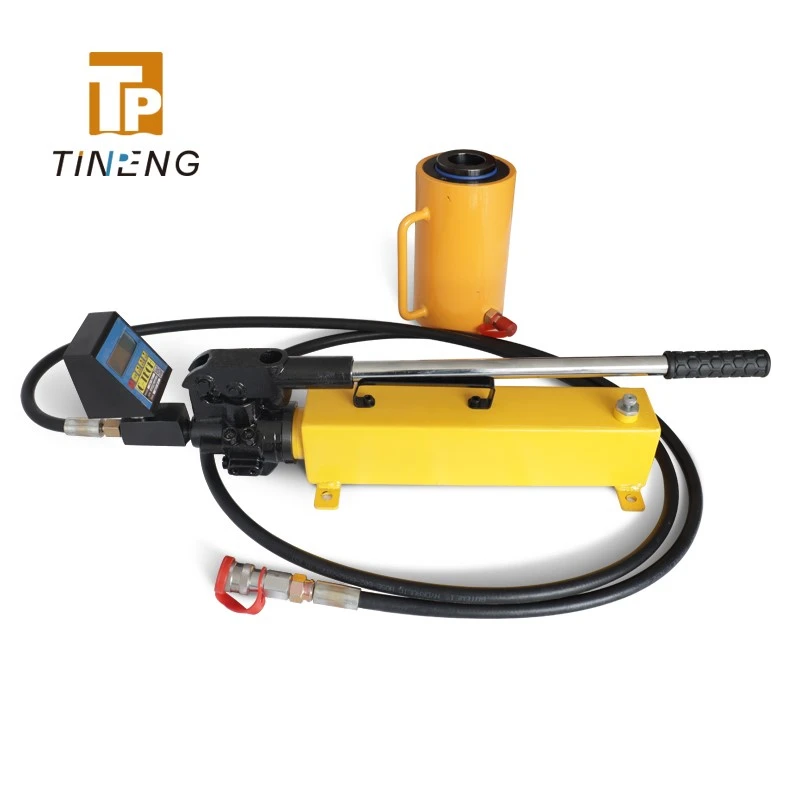

This pull-off tester is designed to measure the anchoring solid strength of anchor rods, anchor cables, steel rebars, expansion bolts and other anchoring components. It serves as indispensable test equipment for anchor support construction projects.
Specification
| Model | Cylinder hole diameter | Cylinder stroke | Test range | Weight | Accuracy |
|---|---|---|---|---|---|
| JW-10T | 27mm | 60mm | 0～100 KN | 7.5Kg | 0.01KN |
| JW-20T | 34mm | 80mm | 0～200 KN | 14Kg | 0.01KN |
| JW-30T | 45mm | 80mm | 0～300 KN | 16Kg | 0.01KN |
| JW-50T | 60mm | 120mm | 0～500 KN | 29Kg | 0.01KN |
| JW-100T | 85/95mm | 150mm | 0～1000 KN | 45/65Kg | 0.1KN |
