Description of Product

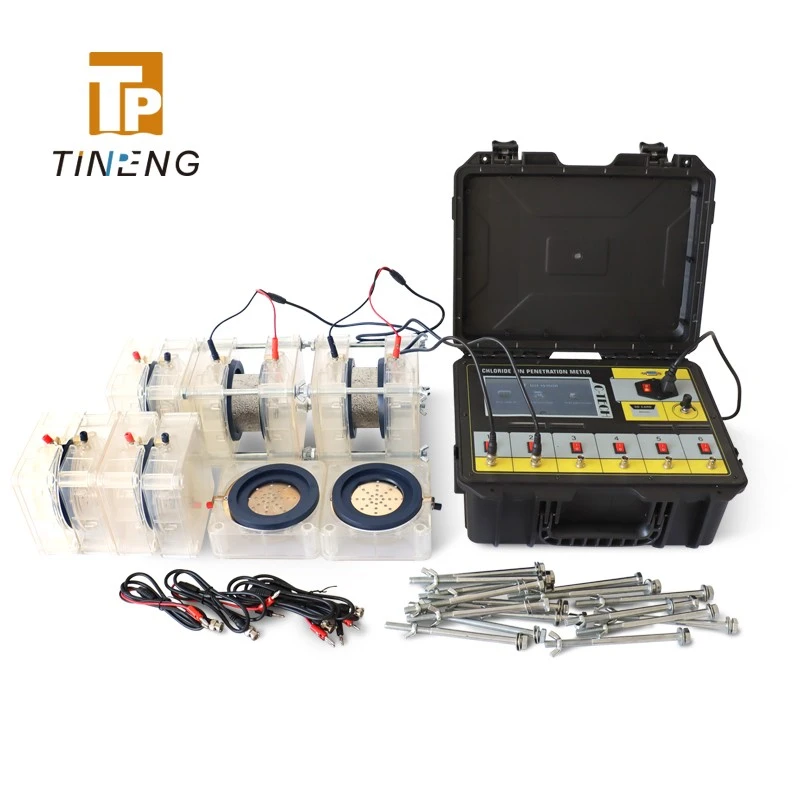

This testing procedure assesses how readily chloride ions penetrate concrete materials. It tracks the electric current flowing through cylindrical or core concrete samples during the test. A voltage is applied between the two ends of the specimen: the negative side is submerged in sodium chloride solution, while the positive side sits in sodium hydroxide solution. The total electric charge (measured in coulombs) passing through the sample is recorded; this value reflects the concrete's resistance against chloride ingress.
| Item | Specification |
|---|---|
| Test ability | C30~C50 Portland cement concrete |
| Test channel | 6 channels, 9 channels, 12 channels, 16 channels optional |
| Working environment | 0℃~50℃, humidity ≤75% |
| Measurement error | <1% |
| Accuracy | ±0.1 V, ±1 mA |
| Working voltage | ~220VAC, 60VDC |
| Working current | 0-360mA |
| Host | 385×345×145mm, 5kg |
| Specimen cells | 6 sets; 440×350×210mm; 9kg |
| Total weight | 46kg (vacuum saturated machine included) |
Features
-
Measuring Principle
This measurement method adopts a closed-loop control system to sustain a 60 V DC potential difference. It captures the electric current flowing through samples and calculates the electric charge by integrating current over time.
-
Features
Controlled by an embedded processor; data will be saved automatically upon power failure. It delivers sophisticated technology, fine workmanship, stable operation and high measuring precision.
Equipped with an LCD screen supporting real-time data viewing, on-site printing and data analysis. It works independently without a PC, suitable for field inspection tasks.
Built-in standard RS232 serial interface for seamless connection with computer software. The system can generate electric flux test reports, plot data curves and support printing for analysis and file archiving.
Integrated automatic short-circuit protection function to prevent hardware damage under abnormal conditions.
Sample holders made of imported materials, featuring excellent precision and simple, user-friendly operation.
Supports batch testing: 2 groups (6 specimens), 3 groups (9 specimens), 4 groups (12 specimens) or 5 groups (16 specimens) of concrete samples in a single run.
Matched with the latest all-in-one intelligent vacuum saturation device.
-
Vacuum Saturated Machine Introduction
This intelligent concrete vacuum saturator is designed for pre-saturation of concrete specimens, which is a mandatory pretreatment step for electric flux and chloride diffusion tests of concrete. It is widely applied for durability design, production quality inspection and project acceptance of concrete structures in high-speed railways, coastal projects, water conservancy facilities, bridges, tunnels, industrial and civil buildings. It is essential lab apparatus for concrete durability research in testing institutes. The device incorporates multiple cutting-edge international technologies. It uses a microprocessor as the core control unit to realize fully automatic workflow, while manual parameter setting and operation are also available for flexible use. The main chamber is constructed entirely from stainless steel for superior anti-corrosion performance. It can process up to 12 concrete specimens for water saturation in one batch
