Description of Product

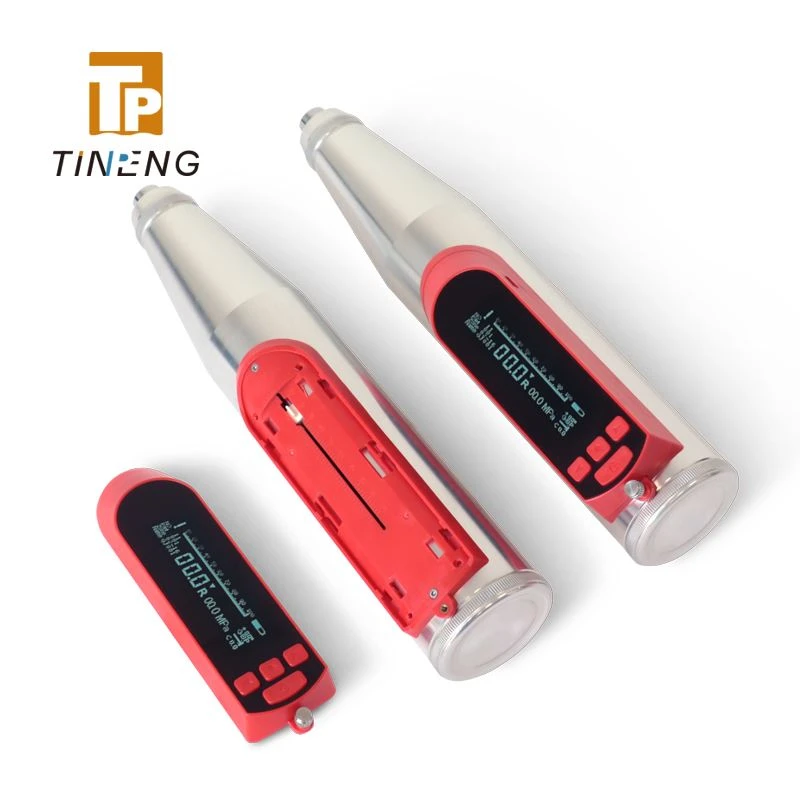

The HT-225DS Digital Concrete Test Hammer is an advanced non-destructive testing (NDT) instrument designed for concrete compressive strength measurement. It combines precision mechanical engineering with smart digital technology, featuring a unique modular design that separates the mechanical hammer body from the digital processor for quick field replacement of components. The complete package includes one digital/mechanical rebound hammer unit, one high-capacity lithium-ion battery with charger, one Mini-USB data cable, one calibration anvil, and one product manual.
Standards
- ASTM C805
- EN 12504-2
Specification
TECHNICAL PARAMETERS
|
Impact energy |
0.225kgm (2.207J±0.100J) |
|
Rigidity of recoiling tension spring |
785±30.0N/m |
|
Length of pointer |
20.0±0.2mm |
|
Friction of pointer |
0.65±0.15n |
|
Spherical radius of recoiling rod |
R25±1.0 |
|
Active length of recoiling tension spring |
61.5±0.3mm |
|
Impact length of recoiling rod |
75.0±0.3 mm |
|
Calibration value on steel anvil |
80±2 |
|
Consistency of test indicating value |
≦±1 |
|
Operating Temperature |
-4ºC-+40ºC |
|
Display screen |
high-light blue OLED display screen |
|
Resolution |
256X64 |
|
Types of sensor |
non-contact optical coupler type sensor |
Features
● Built-in large capacity memory stores up to 1000 components with 16 test zones and 16 test points each
● Powered by high-capacity rechargeable lithium-ion battery for extended service life and field operation
● Supports both standard measurement mode and customizable testing modes for various applications
● Break-point continuous test function enables convenient and user-friendly data collection
● Automatic correction for test angles, casting surfaces and carbonation depth up to 6mm
● Bluetooth connectivity supports mobile app integration for cloud data upload via cloud server
● Non-contact optical sensor technology ensures wear-free operation and longer service life
● System upgrade supported with regular updates from the company to improve user experience
● Data can be exported to PC software for quick report generation in Excel format
