How Accurate Is Non Destructive Concrete Testing?

Non destructive concrete testing can provide fast and valuable information about existing concrete, but its accuracy should never be understood as a single percentage printed on an equipment specification sheet. The reliability of an NDT result depends on the testing method, concrete condition, surface preparation, instrument calibration, operator technique, environmental factors, and-most importantly-the relationship between the measured physical response and the engineering property being evaluated.

How Accurate Is Non Destructive Concrete Testing in Real Engineering Applications?

The accuracy of non destructive concrete testing depends first on what the test is intended to measure. This distinction is often overlooked when NDT equipment is described simply as a method for "measuring concrete strength." In reality, many NDT methods measure an indirect physical response, such as rebound, wave velocity, frequency response, or electromagnetic reflection. Engineers then interpret that response to assess concrete uniformity, identify abnormal areas, or estimate a property such as compressive strength.

For this reason, an NDT result can be highly repeatable without necessarily being an accurate prediction of compressive strength. A measurement system may consistently produce similar readings at the same location while the relationship between those readings and actual concrete strength remains uncertain.

ASTM C805/C805M-25 provides a useful example. The standard states that rebound testing can be used to assess in-place uniformity, identify variations in concrete quality, and estimate in-place strength when an appropriate correlation has been established. It also specifically warns that moisture, surface finishing, vertical location within the placement, carbonation depth, and other factors affect the rebound number.

This leads to an important engineering distinction:

A professional NDT program therefore should not ask only, "How accurate is this instrument?" The better question is, "How accurate is this measurement for this concrete, under this testing procedure, for the decision we need to make?"

The compression testing machine can be presented as the reference laboratory method used to obtain direct compressive-strength data when developing or checking correlations with NDT measurements.

Why Is NDT Accuracy Different from Direct Concrete Strength Testing?

The most important reason for uncertainty in non destructive concrete testing is that NDT generally measures a physical response rather than compressive strength itself.

A concrete compression test directly applies load to a prepared specimen until failure. Tianpeng's DYE-2000C/DYE-2000L compression testing machines are designed for compressive-strength testing of concrete and other building materials and are listed with EN 12390-3 and ASTM C39. The DYE-2000C has a maximum test force of 2000 kN, Class 1 accuracy, and a minimum resolution of 0.1 kN.

By contrast, an NDT measurement may respond to surface hardness, wave propagation, density, internal interfaces, moisture condition, or other physical characteristics. The connection between that measured response and compressive strength is therefore indirect.

Why a Strong Correlation Is More Important Than a High Instrument Resolution

Suppose an instrument displays a measurement to two decimal places. That does not mean the resulting estimate of concrete strength is accurate to two decimal places. The display resolution describes how finely the instrument reports its measured signal; it does not describe the uncertainty of the engineering property derived from that signal.

This is particularly important when an NDT system uses a conversion curve to transform an instrument reading into an estimated compressive strength. The curve may have been developed from a particular concrete mixture, aggregate type, curing condition, age, surface condition, and testing orientation. Applying the same curve to a different concrete can introduce significant systematic error.

ASTM C805/C805M-25 specifically states that manufacturer-provided rebound-strength relationships should be used only as indications of relative strength at different locations. For estimating strength, the standard recommends establishing a relationship for the particular concrete and apparatus, using corresponding core strengths as part of the correlation process.

This is one of the most important practical rules in NDT: a better-looking conversion curve is not necessarily a more valid conversion curve. The curve must represent the concrete actually being investigated.

What Factors Affect the Accuracy of Non Destructive Concrete Testing?

Concrete is not a homogeneous manufactured block. Its aggregate type, cementitious materials, water content, curing history, moisture state, age, porosity, surface treatment, reinforcement and internal defects can all influence an NDT response.

Consequently, two concrete elements with the same nominal design strength may not necessarily produce identical NDT readings.

Concrete Moisture and Saturation

Moisture is one of the most common variables affecting concrete NDT results. For wave-based measurements, water can change the way stress waves propagate through the material. ASTM C597-22, for example, states that the degree of concrete saturation affects ultrasonic pulse velocity and notes that saturated concrete may produce pulse velocities up to approximately 5% higher than dry concrete under the conditions described by the standard.

For practical inspection, this means that measurements collected from a wet section should not automatically be compared with measurements from a dry section as though the environmental conditions were identical.

Surface Condition and Carbonation

Surface condition can be equally important. Finishing method, roughness, coatings, plaster, damaged surfaces and carbonation can affect measurements obtained from the near-surface region.

ASTM C805/C805M-25 explicitly identifies surface moisture, form material or finishing method, vertical position and carbonation depth as factors that need to be considered when interpreting rebound measurements.

This is why surface preparation should be considered part of the measurement procedure rather than an optional cosmetic step.

Aggregate Type and Concrete Mix Composition

Aggregate characteristics can also influence NDT responses. A concrete containing hard, dense aggregate may behave differently under an impact or wave-based measurement from concrete made with a different aggregate mineralogy, even when the nominal compressive strengths are similar.

The same issue applies to different cementitious systems, water-to-binder ratios, curing conditions and ages. A calibration relationship established for one mix should therefore not automatically be transferred to another mix without verification.

How Does Instrument Calibration Affect NDT Accuracy?

Calibration is fundamental to accurate non destructive concrete testing, but calibration and correlation are not the same thing.

Calibration checks whether the instrument itself is producing an acceptable measurement response. Correlation establishes how that measurement relates to the concrete property being investigated.

These two concepts should be kept separate.

For rebound-based equipment, ASTM C805/C805M-25 notes that nominally similar instruments can produce rebound numbers differing by 1 to 3 units. It therefore recommends using the same instrument for comparative testing or conducting comparative tests when multiple instruments are used.

This is a significant field-inspection issue. If one survey team uses one instrument and another team uses another nominally equivalent instrument, a difference in readings does not automatically represent a difference in concrete quality.

How Can Engineers Improve the Accuracy of Non Destructive Concrete Testing?

Improving NDT accuracy is usually more about controlling the test procedure than simply purchasing a more expensive instrument.

The first step is to define the inspection objective. If the purpose is to compare different areas of one structure, consistency of instrument, orientation, surface condition and measurement procedure may be more important than converting every result into an absolute strength value.

If the purpose is to estimate in-place compressive strength, a project-specific correlation should be considered. ASTM C805/C805M-25 describes a correlation approach involving rebound measurements and corresponding core strengths from multiple locations with different rebound values. The standard specifies at least six locations and at least two replicate cores at each location for the described correlation procedure.

Use the Same Testing Conditions for Comparative Surveys

When investigating an existing structure, engineers should establish a repeatable measurement grid. Test locations should be documented, surface condition should be recorded, and measurements should be taken using consistent equipment orientation and procedures.

This becomes especially important when the purpose is to identify relative weak zones rather than determine one absolute strength value.

A practical field report should therefore record more than the final NDT number. Concrete age, surface condition, moisture condition, test location, equipment identification, operator, test orientation and relevant environmental conditions can all help explain unexpected results later.

Combine NDT with Direct Reference Measurements

When strength estimation is important, direct reference measurements provide a much stronger basis for interpretation.

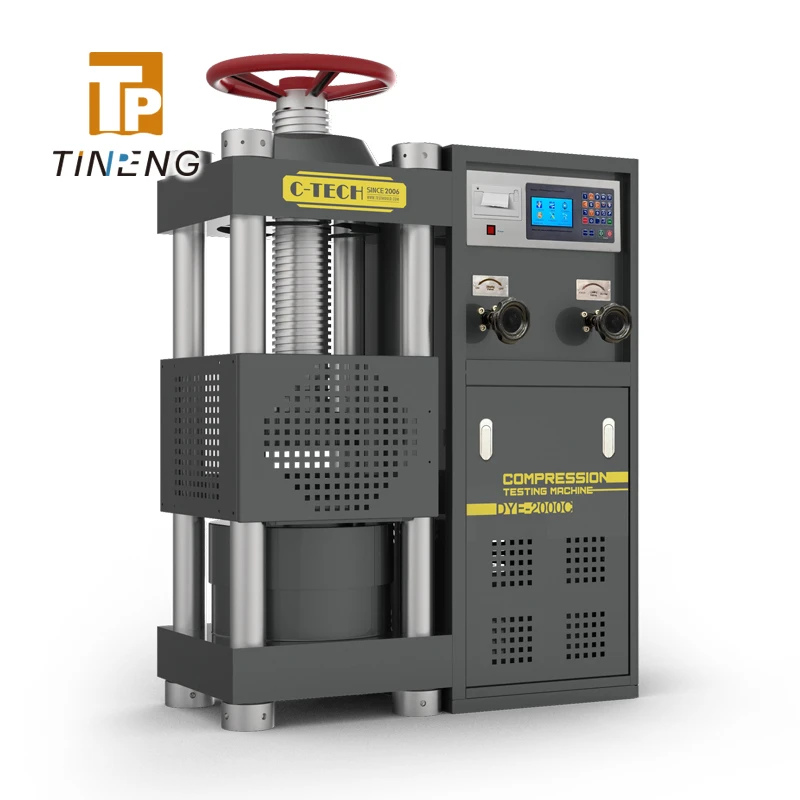

Tianpeng's DYE-2000C/DYE-2000L compression testing machines are suitable for direct compressive-strength testing of concrete specimens and are specified for EN 12390-3 and ASTM C39. The DYE-2000C uses hydraulic loading, sensor-based force measurement and a Class 1 measurement system.

A practical investigation can therefore use NDT to identify representative zones and direct testing to establish the relationship between the NDT response and actual concrete strength. This approach is more defensible than applying a generic manufacturer conversion table to every structure.

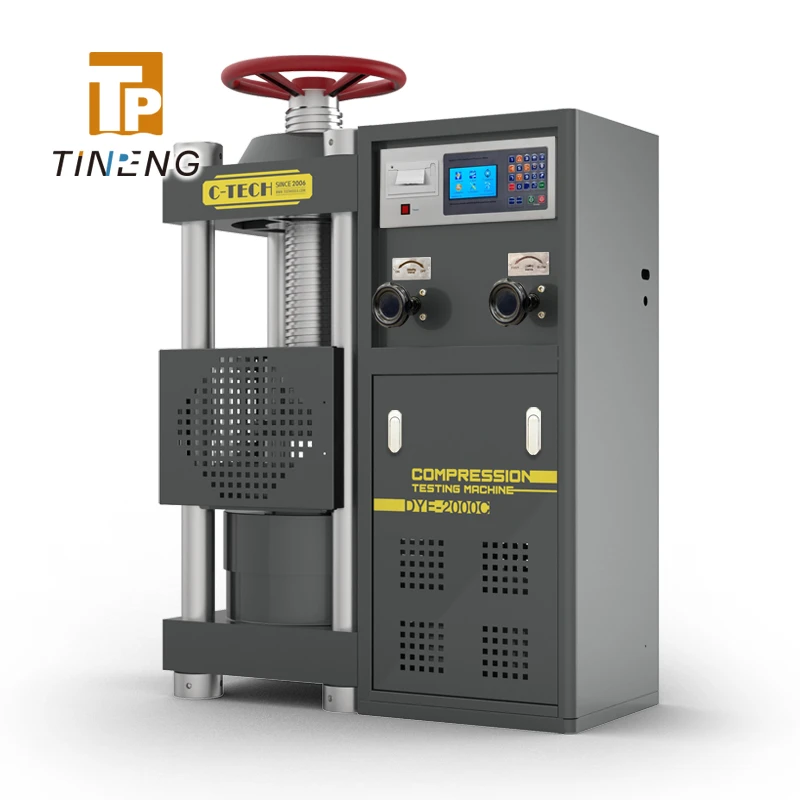

Direct compression testing provides measured strength data that can be used as a reference when evaluating the relationship between an NDT indicator and actual concrete performance.

What Does the Accuracy of NDT Equipment Specifications Really Mean?

Equipment specifications should be read carefully because different manufacturers may use "accuracy," "resolution," "consistency," and "precision" differently.

For example, Tianpeng's DYE-2000C lists Class 1 accuracy and 0.1 kN minimum resolution. Those specifications describe the measurement system of the compression machine. They should not be interpreted as saying that every derived concrete-strength estimate from an NDT method will have the same uncertainty.

Similarly, if an NDT instrument provides automatic correction or digital processing, this can improve operational consistency and reduce calculation or transcription errors, but software correction cannot remove uncertainty caused by inappropriate concrete-specific assumptions.

This distinction should be made especially clear when comparing equipment from different manufacturers. A buyer should examine the complete measurement chain, including sensor principle, calibration procedure, repeatability, data storage, environmental operating range, reference standards, software processing and reporting capabilities.

Can Non Destructive Concrete Testing Be Used for Concrete Acceptance?

NDT results should not automatically be treated as a replacement for acceptance testing.

ASTM C805/C805M-25 explicitly states that the rebound-number test is not suitable as the sole basis for acceptance or rejection of concrete.

This does not reduce the value of NDT. Instead, it clarifies its proper role. NDT is extremely useful for locating variations, screening large areas, investigating existing structures, monitoring changes, selecting locations for further investigation, and supporting engineering assessment.

The problem occurs when an indirect indicator is given more authority than the measurement principle allows.

For example, if an NDT survey identifies a cluster of unusually low readings, the appropriate response may be to investigate those locations further rather than immediately declaring the concrete unacceptable. Additional inspection, sampling, or direct testing can determine whether the anomaly represents genuinely weaker concrete, different surface conditions, moisture effects, carbonation, reinforcement interference, or another factor.

How Should NDT Accuracy Be Reported in a Professional Test Report?

A technically useful NDT report should describe the measurement conditions instead of presenting only a final number.

The report should explain the testing method, instrument identification, calibration status, measurement locations, surface condition, relevant environmental conditions, test orientation, number of readings and data-processing method. If a strength estimate is provided, the source of the correlation should also be documented.

This reporting structure helps prevent a common problem in NDT projects: a technically correct measurement being interpreted incorrectly because the surrounding information was not recorded.

How Should Buyers Evaluate the Accuracy of Non Destructive Concrete Testing Equipment?

When purchasing non destructive concrete testing equipment, buyers should not select a product solely because its brochure contains the smallest numerical error or the highest display resolution.

A better purchasing process begins with the intended application. The buyer should determine whether the instrument is intended for comparative condition surveys, strength estimation, defect investigation, thickness measurement, quality control or research. The required standard should then be identified, followed by the required measurement range, calibration procedure, environmental conditions, data-management requirements and training support.

Tianpeng's product range extends beyond individual NDT instruments into Concrete Testing Equipment, Universal Testing Machines, Cement Testing Equipment, Rock and Aggregate Testing Equipment, Asphalt Testing Equipment, Soil Testing Equipment, Material Testing Equipment, and General Equipment. This is relevant when a laboratory needs to combine field investigation with controlled laboratory verification rather than treating NDT as an isolated testing activity.

For equipment intended for the European market, CE marking should also be evaluated correctly. CE marking is not simply a generic "accuracy certificate." The European Commission states that manufacturers are responsible for identifying applicable EU legislation, carrying out the required conformity assessment, preparing technical documentation and issuing the EU Declaration of Conformity before affixing CE marking where required.

Buyers can refer to the official European Commission CE marking guidance when checking what CE marking actually represents and what documentation should accompany a product.

Summary and Recommendations

The accuracy of non destructive concrete testing cannot be reduced to one universal percentage. NDT is fundamentally an indirect measurement approach in many applications, and its reliability depends on the physical principle, concrete characteristics, instrument condition, testing procedure, operator technique and interpretation model.

The most important practical distinction is between instrument accuracy and engineering accuracy. An instrument may measure its physical response precisely while the estimated concrete strength remains uncertain because the correlation between the response and strength is not sufficiently representative.

For comparative surveys, consistent equipment and controlled testing conditions are essential. For strength estimation, project-specific correlation and direct reference measurements can substantially improve confidence. For important structural decisions, NDT should normally be integrated with other evidence rather than treated as an isolated pass-or-fail test.

The most reliable NDT program therefore follows a simple engineering logic: define the question, select the physical measurement that can answer it, control the test conditions, verify the instrument, establish an appropriate correlation when necessary, and clearly report the limitations of the result.

Frequently Asked Questions About Non Destructive Concrete Testing Accuracy

Is non destructive concrete testing accurate?

Yes, NDT can provide highly useful and repeatable information, but the meaning of "accurate" depends on the property being measured. A direct physical measurement and an estimated concrete-strength value should not be treated as having the same uncertainty.

Can NDT accurately determine concrete compressive strength?

NDT can be used to estimate compressive strength when an appropriate correlation has been established. ASTM C805/C805M-25 specifically requires consideration of the concrete mixture and testing apparatus when developing a rebound-number-to-strength relationship.

Why can two NDT instruments produce different results?

Differences can arise from instrument characteristics, calibration, sensor response, surface condition, operator technique and testing orientation. ASTM C805/C805M-25 notes that instruments of the same nominal design can differ by 1 to 3 rebound units, which is why consistent equipment is important for comparative testing.

Does higher resolution mean higher NDT accuracy?

No. Resolution describes how finely an instrument displays or records a measurement. It does not automatically describe the uncertainty of an engineering property derived from that measurement.

How can engineers improve the reliability of NDT results?

The most effective approach is to control testing conditions, use properly verified equipment, establish repeatable measurement locations, document environmental and surface conditions, and use direct reference testing when an indirect NDT measurement needs to be converted into a quantitative engineering property.
