Rebar Bend Testing Machine

Rebar Bend Testing Machine

Model: LW-400B



Description
Specification
Documents
FAQ



Description of Product

The LW-400B rebar bend testing machine performs bending tests on metallic specimens including steel bars, steel plates and construction rebars. It comprises a test host, hydraulic power source, standard bending heads and a control system, with a 400 kN test force and a two-way hydraulic cylinder; support-roller spacing is adjusted by handwheel and self-locks after setting.

What it does:

It carries out bend and reverse-bend tests to evaluate the plasticity and bending performance of reinforcing steel and other metal specimens.

Applications:

Bend testing of construction rebar (HRB400 / HRBF400 series)

Bending tests on steel bars and steel plates

Quality inspection of metal materials in construction and steel plants

How it works:

A double-acting hydraulic cylinder applies the bending load to the specimen supported on rollers, with roller spacing set by handwheel; interchangeable bending heads of Ø6-Ø450 mm accommodate specimen diameters of Ø6-Ø50 mm.

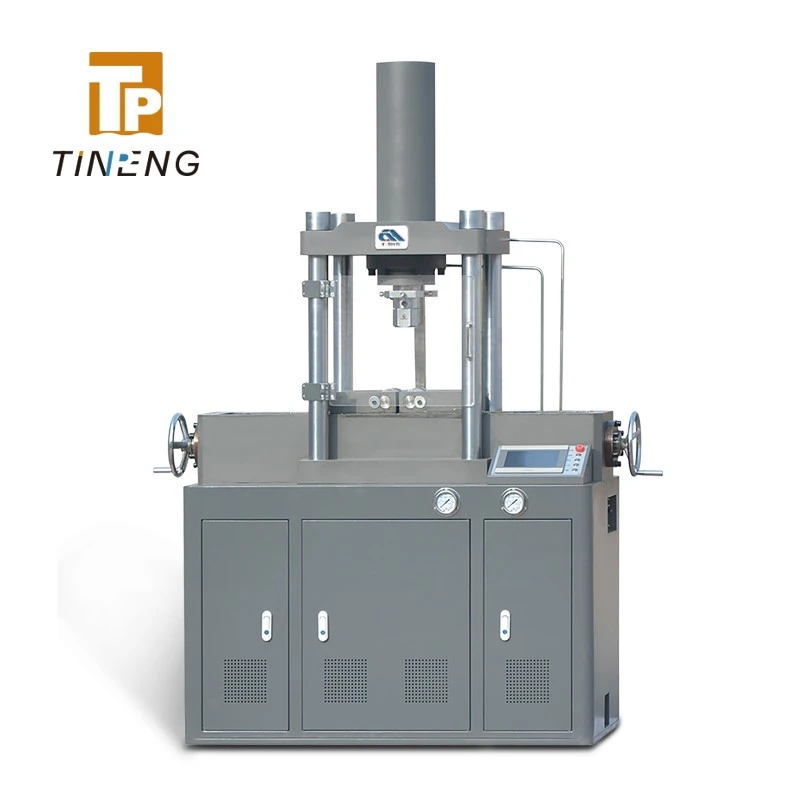

Rebar bend testing machine





Specification



Parameter Value
Max loading capacity 400kN
Piston stroke 350mm
Working pressure 350mm
Application Bend and reverse bend test
Specimen diameter Φ6-Φ50mm
Installable bending head diameter Φ6-Φ450mm
Support roller spacing 620mm
Cylinder loading speed About 120mm/min
Host dimensions 1450mm×640mm×2000mm
Host weight Approx. 1200 kg
Total power 1.1kW
Power supply 380V 3phase, 50Hz





Parameter Value
Quantity 22 bending heads, 4 bending head bases
Diameter 6-192mm; 24/30/32/40/48/50/56/60/64/70/72/80/88/90/100/110/125/140/160/168/192mm
Application range HRB400/HRBF400/HRB400E/HRBF400E rebar with diameter 6-32mm
Weight Net weight 55kg, total weight 60kg
Dimensions 650×370×135mm
Remark Bending heads of other specifications can be ordered separately if required.





Documents











FAQ

Q: What is the maximum test force and specimen range of the LW-400B?

A: 400 kN maximum load, Ø6-Ø50 mm specimen diameter, Ø6-Ø450 mm installable bending heads and 620 mm support-roller spacing.

Q: How many bending heads are supplied and what rebar do they cover?

A: 22 bending heads (6-192 mm) with 4 bases, covering HRB400/HRBF400/HRB400E/HRBF400E rebar of 6-32 mm diameter.
