Digital Ultrasonic Thickness Tester

Digital Ultrasonic Thickness Tester

Model: Leeb320/321/322



Description
Specification
Configuration
Documents
FAQ



Description of Product

The Leeb320/321/322 digital ultrasonic thickness gauge measures the thickness of metallic materials (cast iron, steel, aluminium) and non-metallic workpieces (ceramics, plastics, glass), as well as any ultrasonic-wave conductor with relatively parallel top and bottom surfaces. Measuring range is 0.7-300 mm with 0.1 mm resolution (0.01 mm on the Leeb322).

What it does:

It performs non-destructive thickness measurement of walls, plates and workpieces from one side, and can directly measure material sound velocity when the specimen thickness is known.

Applications:

Thickness measurement of metal plates, pipes and castings

Wall-thickness checking of plastics, ceramics, glass and composites

On-site corrosion and erosion inspection

How it works:

An ultrasonic pulse travels through the material and reflects from the parallel bottom surface; thickness is derived from the transit time. The gauge has an integrated 4 mm calibration block, coupling-status indication and mm/inch display units.

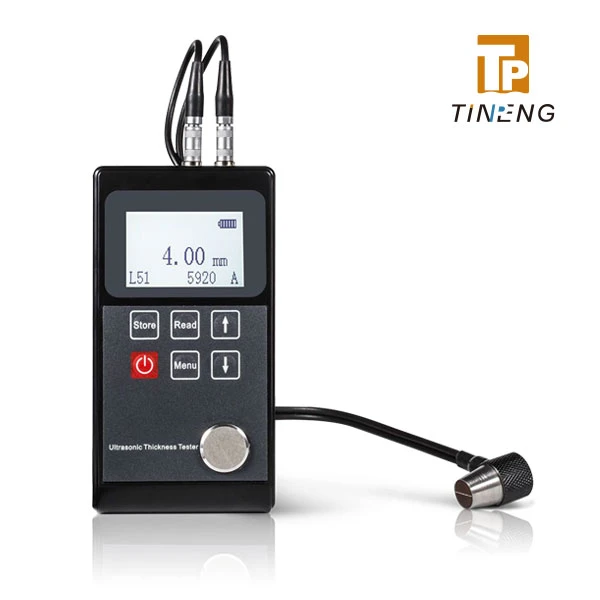

Digital ultrasonic thickness tester





Specification



Parameter Leeb320 Leeb321 Leeb322
Measuring range(mm) 0.7~300 ( depends on the probe & material) 0.7~300 ( depends on the probe & material) 0.7~300 ( depends on the probe & material)
Resolution(mm) 0.1 0.1 0.01
Accuracy(mm) ±(1%H+0.1), H refers to the thickness of testing piece ±(1%H+0.1), H refers to the thickness of testing piece ±(0.5%H+0.1), H refers to the thickness of testing piece
Velocity range(m/s) 5920 1000~9999 1000~9999
Storage No No 500 groups
Shell Plastic Plastic Plastic
Operating Temperature -10°C~60°C -10°C~60°C -10°C~60°C
Dampness 20%~90% 20%~90% 20%~90%
Dimensions(mm) 130×70×25 130×70×25 130×70×25
Power supply AAA alkaline batteries AAA alkaline batteries AAA alkaline batteries
Weight (g) 200g 200g 200g





Configuration



Digital ultrasonic thickness tester

Main unit 1
Coupling agent 1
Standard probe L51 (5P Ø10) 1
AAA alkaline battery 2
Users' Manual 1
Packing list 1


Optional accessories
L51 Parameter: 5P Ø10 Measuring Range(mm): 1-250 (steel) Temperature: -10°C~60°C Features: Standard probe for Normal test
KK Parameter: 5P Ø10 Measuring Range(mm): 1-350 (steel) Temperature: -10°C~60°C Features: Large range for Normal test
L77 Parameter: 7P Ø6 Measuring Range(mm): 0.75-50 (steel) Temperature: -10°C~60°C Features: For thin, arc surface
LZ2 Parameter: 2P Ø22 Measuring Range(mm): 2.5-350 (steel) Temperature: -10°C~60°C Features: For cast &rough surface
LG5 Parameter: 5P Ø14 Measuring Range(mm): 2.0-100 (steel) Temperature: -10°C~500°C Features: For high temperature material



Documents











FAQ

Q: Which materials can the digital ultrasonic thickness gauge measure?

A: Metals (steel, cast iron, aluminium, copper), plastics, ceramics, composites, epoxies and glass - any good conductor of ultrasonic waves with relatively parallel surfaces.

Q: What are the accuracy and storage differences between the Leeb320/321 and Leeb322?

A: Leeb320/321: ±(1%H+0.1) accuracy, 0.1 mm resolution and no storage; Leeb322: ±(0.5%H+0.1), 0.01 mm resolution and 500-group storage.
