Zhuozhou Tianpeng Imp. and Exp. Trade Co., Ltd. is one of the leading manufacturers and suppliers of los angeles abrasion machine in China. With abundant experience, we warmly welcome you to buy customized los angeles abrasion machine made in China here from our factory. Quality products and reasonable price are available.
Description of Product
The Los Angeles Abrasion Machine features a heavy-duty drum constructed from 12mm-thick rolled steel, with an internal diameter of 710mm and an internal length of 510mm. This drum is driven by an electric motor paired with a speed reducer, enabling a rotational speed ranging from 31 to 33 revolutions per minute. The unit is fitted with a programmable automatic counter, which can be pre-configured to stop the drum after a specified number of revolutions. The entire machine is finished with a durable powder coating for enhanced corrosion resistance and longevity.
Standards
- EN 1097-2
- NF P18-573
- UNE 83 114
- UNI 8520-19
- CNR NO. 34
- ASTM C131
Specification
TECHNICAL PARAMETERS
|
Internal dimension |
710mm×510mm(±5mm) |
|
Rotate speed |
31-33 r.p.m |
|
Outside dimension |
942x959x948mm |
|
Abrasive charges |
Set of 12 abrasive charges: 1.13/16" (7 pcs) and 1.7/8" (5 pcs). (ASTM, C.N.R) |
|
Abrasive charges (options) |
Set of 12 abrasive charges: 1.7/8" (EN) |
|
Power |
AC220V 50HZ/60HZ 750W |
|
Weight |
340kg |
Features

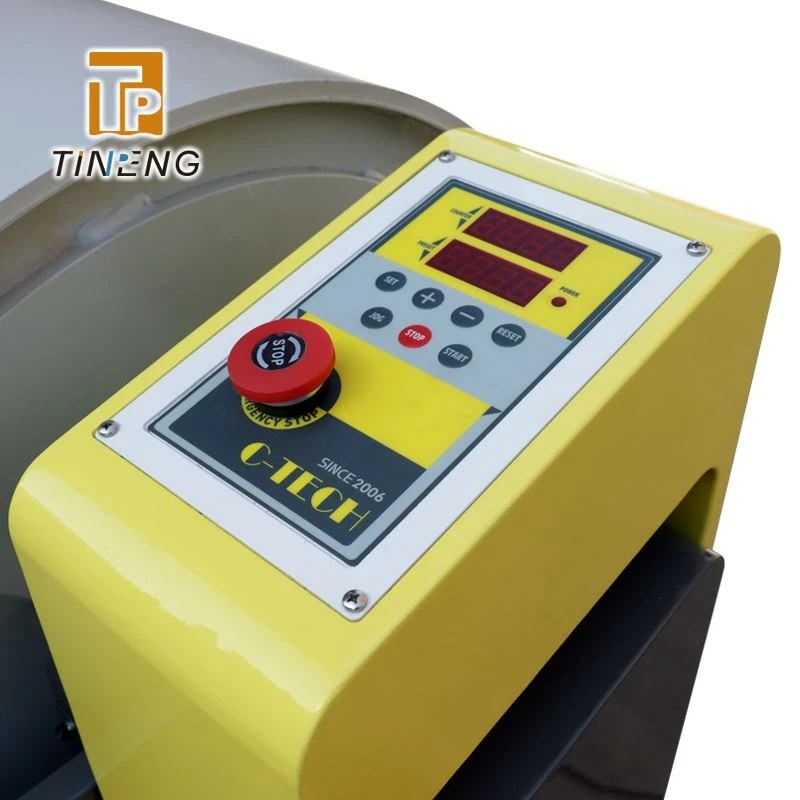

1. Built with an automatic digital counting device that accurately displays the drum's real-time rotation times.
2. Features a heavy-duty steel drum with 12mm wall thickness, supported by a sturdy steel base frame.
3. Equipped with a special steel tray designed for convenient specimen
Accessories
EN 1097-2
- 42-5305/01A2 Set of 12 abrasive charges: 1.7/8"
SPARE PARTS (NEED TO BE ORDERED SEPARATELY)
- 42-5305/01A1 Abrasive charges: Set of 12 abrasive charges: 1.13/16" (7 pcs) and 1.7/8" (5 pcs).
- 42-5305/01A3 Noise reduction and safety cabinet 110kg
- 42-5305/01A4 Steel tray for specimen unloading
- 42-5305/01A5 Protect cover
