Zhuozhou Tianpeng Imp. and Exp. Trade Co., Ltd. is one of the leading manufacturers and suppliers of cone penetrometer apparatus in China. With abundant experience, we warmly welcome you to buy customized cone penetrometer apparatus made in China here from our factory. Quality products and reasonable price are available.
Description of Product

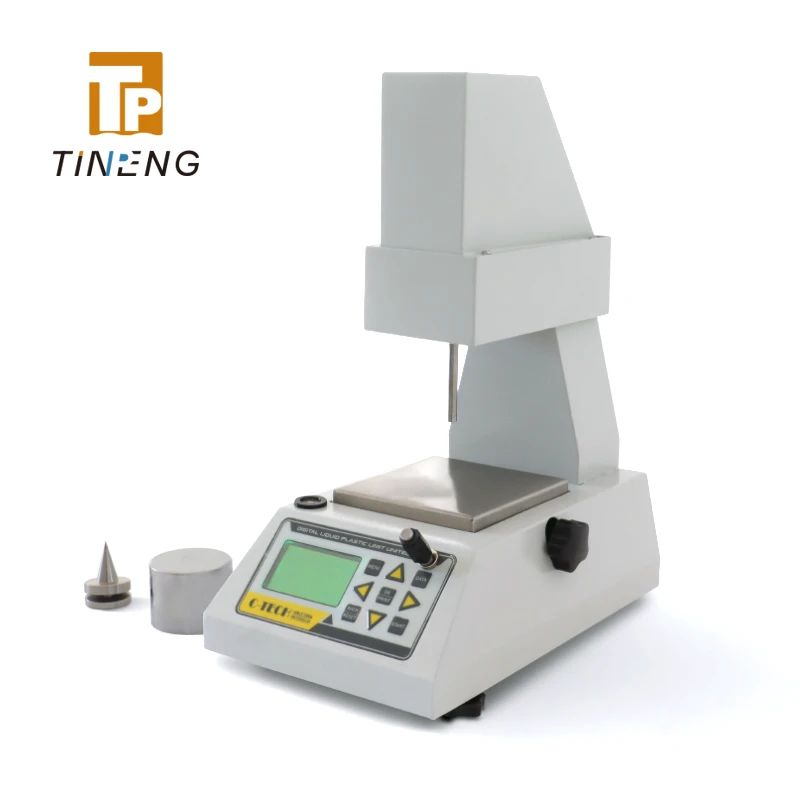

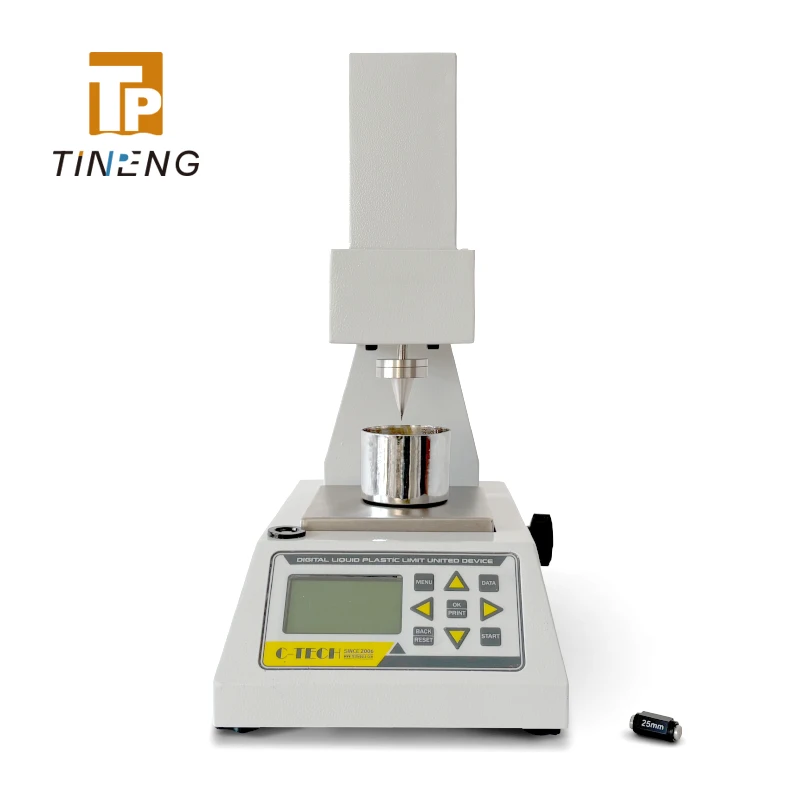

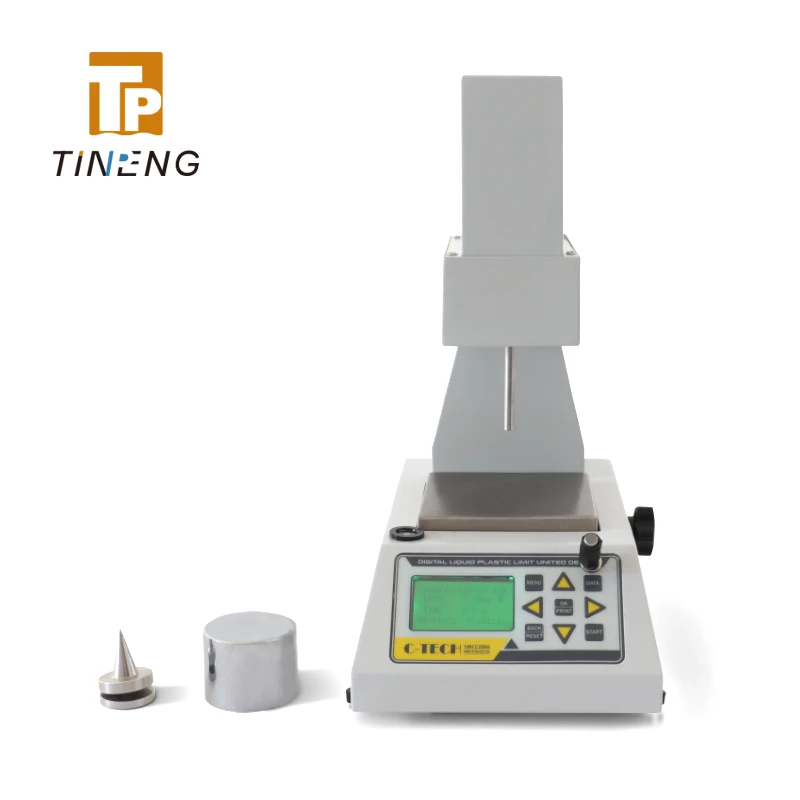

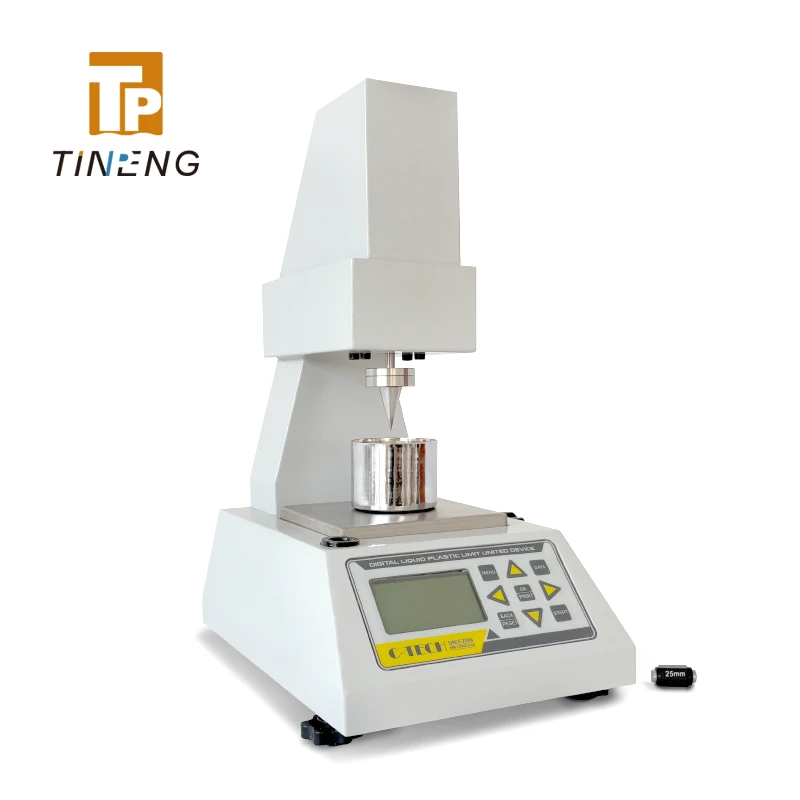

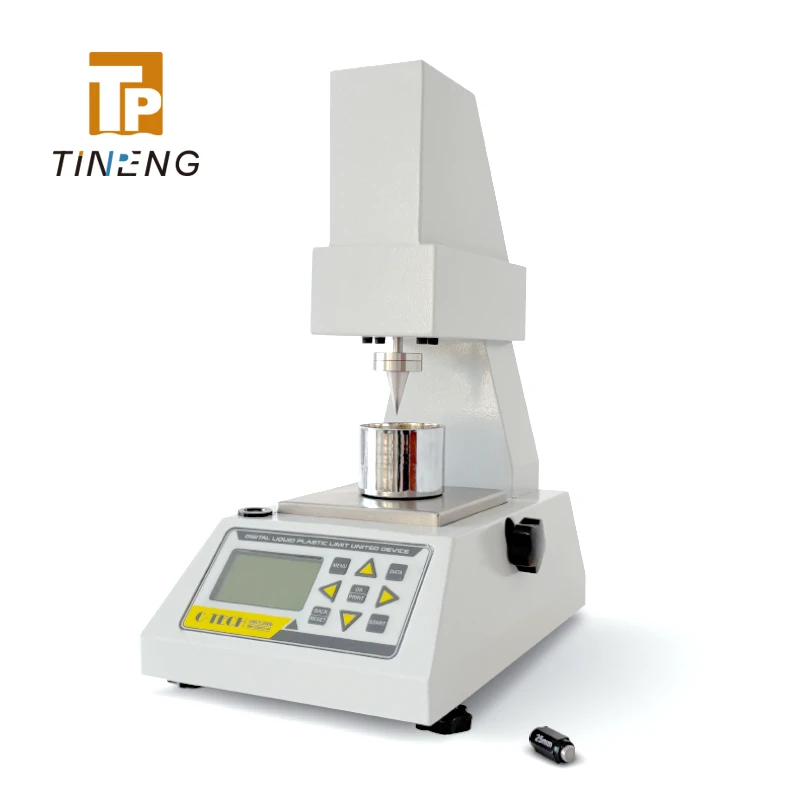

The DLP-100B is a precision digital instrument for determining soil liquid and plastic limits, providing reliable data for soil classification, consistency evaluation, and plasticity index calculation. With automatic measurement and a clear digital display, it reduces errors and ensures consistent results. Ideal for labs and construction quality control, it meets international testing standards for efficient soil plasticity analysis.
Specification
TECHNICAL PARAMETERS
|
Max. measuring range |
45mm |
|
Resolution |
0.01mm |
|
Nonlinear error |
0.05mm |
|
Cone and connecting rod weight |
100±0.1g |
|
Cone angle |
30°±0.2° |
|
Sample cup |
internal dia. 50 x 40mm |
|
Working voltage |
220V, 50HZ |
|
Dimension |
410x330x230mm |
|
Weight |
4.7kg |
