Zhuozhou Tianpeng Imp. and Exp. Trade Co., Ltd. is one of the leading manufacturers and suppliers of automatic triaxial test apparatus in China. With abundant experience, we warmly welcome you to buy customized automatic triaxial test apparatus made in China here from our factory. Quality products and reasonable price are available.
Description of Product
This Fully Automatic Triaxial Testing System Apparatus is engineered with state-of-the-art technology, seamlessly merging mechanical and electronic systems with fully-automated control and sensor automated checking capabilities.we The complete assembly includes the Triaxial Loading Frame, Advanced Pressure Volume Controller (APVC), Triaxial Cell, various sensors, temperature control devices, and AdvancedGeoLAB® software. Notably, the Triaxial Loading Frame is designed with versatility in mind, functioning effectively either as an independent stand-alone unit or as an integral component of the computer-controlled triaxial system.
Integrated Test-Control Modules Overview
The software suite comprises several specialized modules designed to streamline the testing workflow:
Data Acquisition Module: For real-time recording of experimental data.
- Standard Saturation and Consolidation Module: This module is engineered to handle:
Routine B check procedures.
Precise control of Saturation ramps of cell pressure and back pressure.
Execution of Isotropic consolidation.
- Standard Triaxial Testing Module: Fully supports the essential triaxial protocols:
Unconsolidated – undrained test (U-U test)
Consolidation – undrained test (C-U test)
Consolidation – drainage test (C-D test)
- Post-processing module: Dedicated to data analysis and reporting.
Standards
- ASTM D4767
- ASTM D2850
-
ASTM D2166/D2166M
Specification
TECHNICAL PARAMETERS
|
Maximum Axial Force (Load Sensor) |
50 kN |
|
Chamber |
Ø 38mm x76mm (H) & Ø 50mm x100mm (H) |
|
Testing Speed Rate |
0.00001 - 9.99999 mm/min |
|
Precision |
+/- 0.1% F.S. |
|
Displacement Sensor Measuring Range |
25mm with accuracy 0.01mm |
|
Maximum Vertical Clearance |
500mm |
|
Horizontal Clearance |
300mm |
|
Platen Diameter |
148mm |
|
Power |
110-240V, 50Hz |
|
Dimension(mm) |
580mm (L) x 380mm (W) x1140mm (H) |
TRIAXIAL CELL TPS-YLS50
|
Sample Size |
50/70mm |
|
Maximum Cell Pressure |
2000 kPa |
|
Dimensions |
Ø 180 mm |
|
Weight |
12kg |

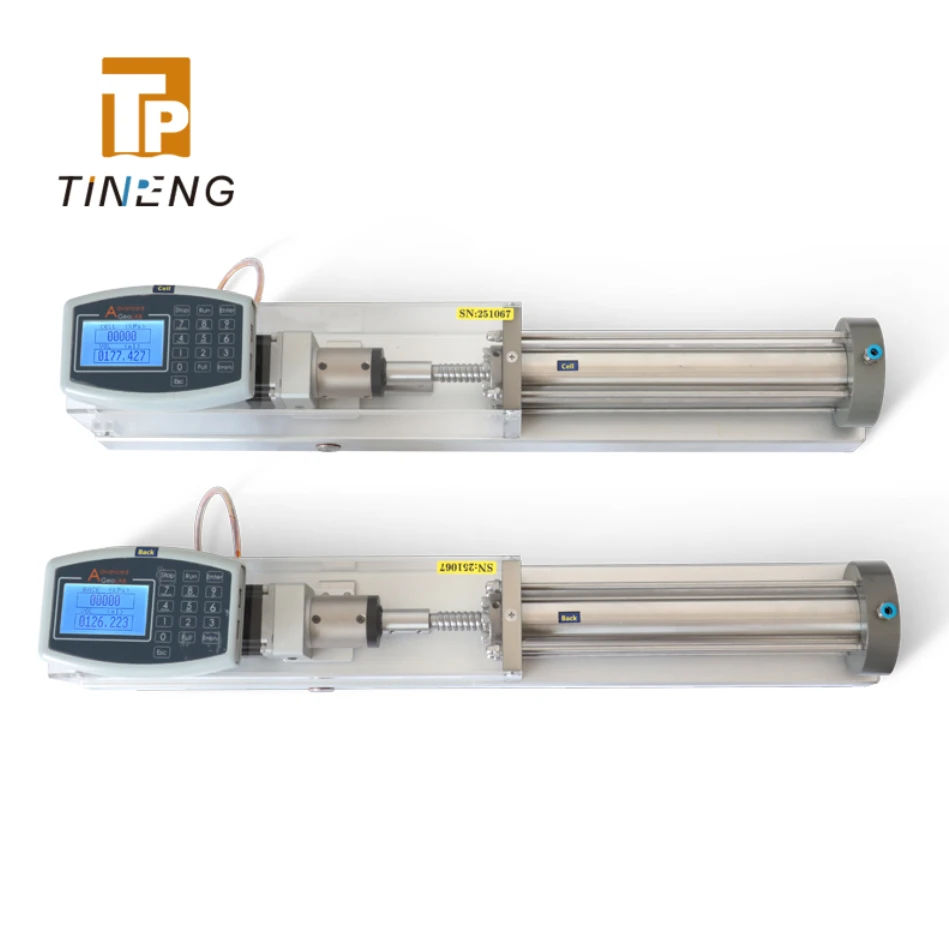

2MPA/200CC CONFINING PRESSURE/ VOLUME CONTROLLER
● 2MPa/200cc confining pressure/ volume controller
● Connection via USB port
● Built-in 16 keys
● 192*64 LCD display
● Confining pressure: 2MPa, regulated and displayed to 1kPa
● Maximum volume change: 200cc, measured and displayed to 1cu.mm (0.001ml)
● Automatic protection to prevent over pressure and volume
2MPa/200cc back pressure/ volume controller
● Connection via USB port
● Built-in 16 keys
● 192*64 LCD display
● Back pressure: 2MPa, regulated and displayed to 1kPa
● Maximum volume change: 200cc, measured and displayed to 1cu.mm (0.001ml)
● Automatic protection to prevent over pressure and volume
Video
Training
Training services are available for this equipment, including on-site training, training videos and training documents. Contact us for a quote.
Duration: 1 day
