Description of Product

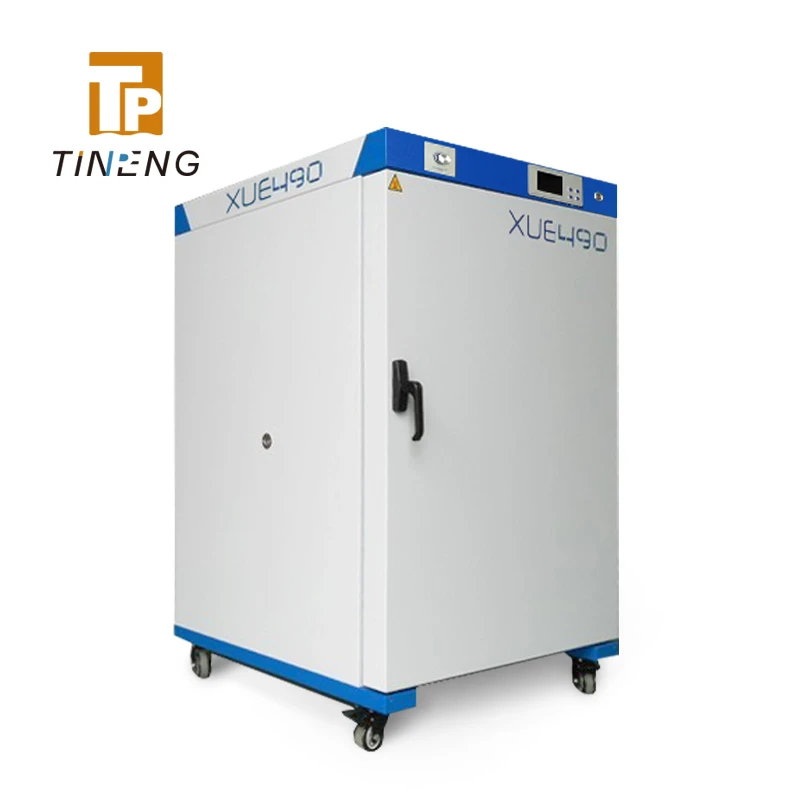

These ovens are designed for drying, heating, thermal preservation, component aging, and various thermal tests in laboratory and industrial settings. All models feature fan-circulated airflow, which accelerates the drying process and ensures uniform temperature distribution throughout the chamber. The fan and heating elements are positioned at the rear, shielded from the workspace by a stainless steel baffle. Air is drawn from the center of the oven, passes over the temperature sensor and sheathed heater elements, then circulates around the baffle to both sides before being recirculated. Available with temperature range up to 300°C and volumes of 32, 58, 112, 225, 343, 490, 686 and 980 litres.
Specification
TECHNICAL PARAMETERS
|
Model |
XUE032 |
XUE058 |
XUE112 |
XUE225 |
XUE490 |
XUE686 |
XU980 |
|
Temperature range |
Ambient + 10°C to 300°C |
||||||
|
Temp spatial variation 105°C±°C |
< 1.2 |
< 1.2 |
< 1.2 |
< 1.2 |
< 1.2 |
< 1.2 |
< 1.2 |
|
Temperature fluctuation ±°C |
< 0.2 |
< 0.2 |
< 0.2 |
< 0.2 |
< 0.2 |
< 0.2 |
< 0.2 |
|
Dimensions |
|||||||
|
Work chamber volume L |
32 |
58 |
112 |
225 |
490 |
686 |
980 |
|
Internal width mm |
300 |
400 |
500 |
500 |
700 |
700 |
1000 |
|
Internal depth mm |
270 |
360 |
450 |
450 |
700 |
700 |
700 |
|
Internal height mm |
400 |
400 |
500 |
1000 |
1000 |
1400 |
1400 |
|
External width mm |
464 |
565 |
664 |
668 |
840 |
840 |
1140 |
|
External depth mm |
566 |
602 |
692 |
710 |
910 |
910 |
1015 |
|
External height mm |
694 |
694 |
794 |
1294 |
1270 |
1670 |
1670 |
|
Shelves in stainless steel |
|||||||
|
Number standard / max |
2/6 |
2/6 |
2/8 |
2/17 |
2/17 |
2/24 |
2/24 |
|
Shelves dimensions (w x d) mm |
270x240 |
370x330 |
470x420 |
500x450 |
670x670 |
670x670 |
970x670 |
|
Max load shelf / oven kg |
30/60 |
30/60 |
30/60 |
30/120 |
30/240 |
30/240 |
30/240 |
|
Number of door (s) |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
|
Weight (empty) Kg |
35 |
47 |
54 |
120 |
205 |
235 |
295 |
|
Power supply 50 Hz 230 Volts single-phase, 400 Vtri+T+N/power>4000 Watts: 400 V 3-phase five wires |
|||||||
|
Max rating 300°C Watts |
1000 |
2000 |
2000 |
3000 |
4000 |
6000 |
6000 |
Factory options
|
OG9001 |
Extension of max temperature up to 300°C |
|
OG9002 |
Outside casing also made of 304 stainless steel |
|
OG9003 |
Inner case in 316L stainless steel |
|
OG9004 |
Special colour for external casing (indicate RAL) |
|
OP0038 |
Digital timer 0/99 hours with auto/manu selection |
|
OG9008 |
Weekly automation with digital program timer |
|
OP0049 |
Temperature profiler (4 programs of 16 segments each) |
|
OP0026 |
Air extractor 60 m3/hour |
|
OP0024 |
Air extractor 200 m3/hour |
|
OG9014 |
Temperature paper recorder 1 probe |
|
OG9015 |
Temperature paper recorder 2 probes |
|
OP0014 |
Work chamber lighting 40 watts |
|
OG9006 |
Door window |
|
OG9005 |
Air circulation variator |
|
OP0057 |
Additional thermocouple and connector |
|
OG9007 |
Additional safety thermostat class 2 |
|
OP0001 |
Sound alarm |
|
OP0041 OP0042 |
Additional access port diameter 40 mm & silicone cork Additional access port diameter 60 mm & silicone cork |
|
OP0079 |
Air extractor 60 m3/hour with variator |
|
OP0080 |
Air extractor 200 m3/hour with variator |
|
OP0010 |
Calibration certificate 1 temperature 1 point |
|
OP0012 |
Calibration certificate 1 temperature 9 points |
Accessories
GA9001 Extra shelf 30 kg and supports
GA9002 Extra shelf 30 kg and supports
GA9003 Stainless steel tray (20 mm depth)
GA9004 Stacking kit
GA9005 Sub-frame
GA9006 Sub-frame with castors
AC0011 Silicone cork for access port diameter 40 mm
AC0012 Silicone cork for access port diameter 60 mm
