Description of Product
This digital four-probe array meter supports assessment of the possible corrosion rate in reinforcing bars. Corrosion initiation and progression depend on the properties of the cement paste and the permeability of the concrete. Because electrical conductivity in concrete is an electrolytic process driven by ionic movement in the aqueous pore solution of the cement matrix, a highly permeable concrete will show high conductivity and low electrical resistance. Knowledge of a concrete's electrical resistance therefore provides a measure of the possible corrosion rate of steel embedded within it.
Specification
| Technical Parameters | Details |
|---|---|
| Measurement range | 0-2000 KΩ |
| Measure accuracy | 1 KΩ |
| Display stability | ±1 KΩ |
| Display mode | LCD panel |
| Input resistance | 100 MΩ |
| Keep function | Reading keep function |
| Battery operated | 12v, approximately 4-6 hours active operating time |
| Operation temperature | -10℃～50℃ |
| Dimension | 185×85×45mm |

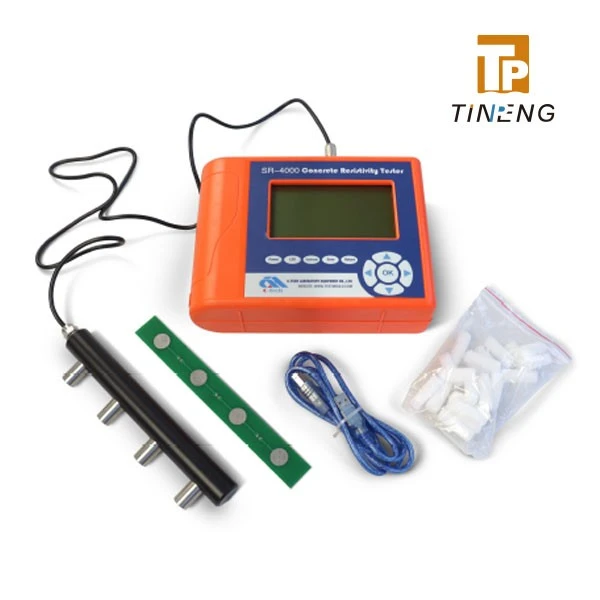

Accessories
- Controller
- Wenner 4-probe array
- Sponge plug
- Cable used for connecting controller and wenner 4-probe array
- Calibration Clock
- Conductive solution
