Zhuozhou Tianpeng Imp. and Exp. Trade Co., Ltd. is one of the leading manufacturers and suppliers of digital concrete test hammer ht-225w/225d in China. With abundant experience, we warmly welcome you to buy customized digital concrete test hammer ht-225w/225d made in China here from our factory. Quality products and reasonable price are available.
Description of Product

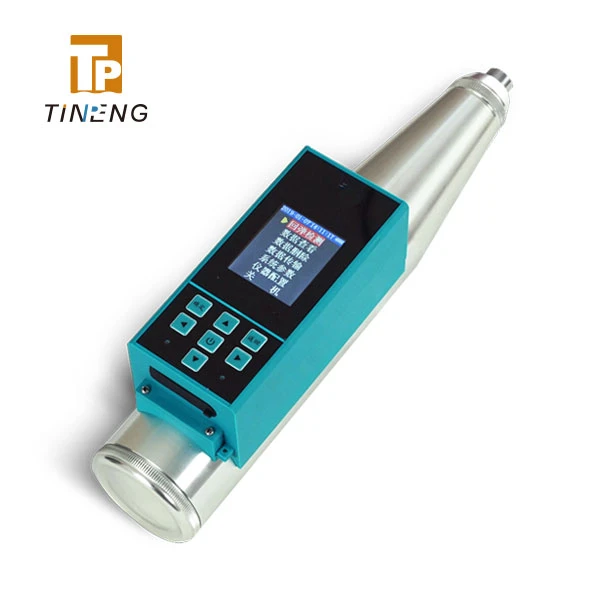

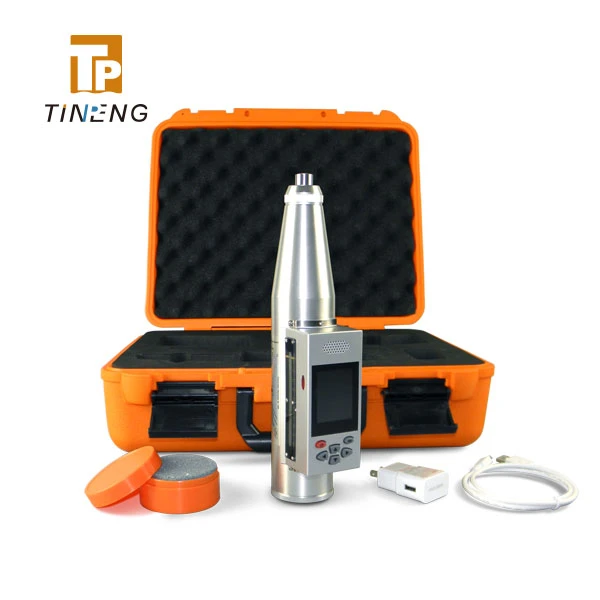

The Digital Concrete Test Hammer is an advanced non-destructive testing instrument designed to evaluate the compressive strength and uniformity of concrete structures. Equipped with a high-precision electronic transducer and microprocessor control system, it automatically converts rebound values into digital readings and displays the results in selected measurement units.
With built-in memory storage and USB communication capability, the digital hammer allows convenient data transfer, analysis, and record management. Its portable design, rechargeable power supply, and reliable measurement performance make it ideal for concrete quality inspection, structural assessment, and construction quality control.
|
Model
|
HT-225W |
| Measuring strength ranges |
10 to 70 N/mm² |
| Impact energy |
2.207 Nm |
| Strike hammer stroke |
75 mm |
| The consistency of the sample displayed values | ≤±0.5(difference value between digital sampling output value and the pointer readings) |
| Stiffness of strike tension spring | 785N/m |
| The rebound values calibrated on steel anvil | 80±2 |
| Display |
16-bit true color, 176×220 resolution, 5 grades backlight adjustment |
| Power |
3.7v /2300mAh rechargeable lithium battery |
| Power consumption approx | 100 mA (Voice off) Maximum backlight situation |
| Communication interface | USB2.0 full-speed |
| Gross weight approx |
4.5 Kg |
| Model |
HT-225D |
| Scope of strength |
10 to 70 N/mm² |
| The kinetic energy of the nominal |
2.207J |
| Spring stiffness | 7.84N/cm |
| Impact hammer stroke | 75mm |
| Consistency error |
≤±0.5 (The difference between the reading of the pointer of the mechanical resilience meter and the reading of the instrument screen) |
| Steel anvil rate set rebound value |
80±2 |
| Dimensions |
55×55×270 mm |
| Weight |
1.0 Kg |
| Operating ambient temperature |
-10℃~40℃ |
| Packing specification | Engineering plastic |
| Dimensions |
Weight:6kg |
Documents
