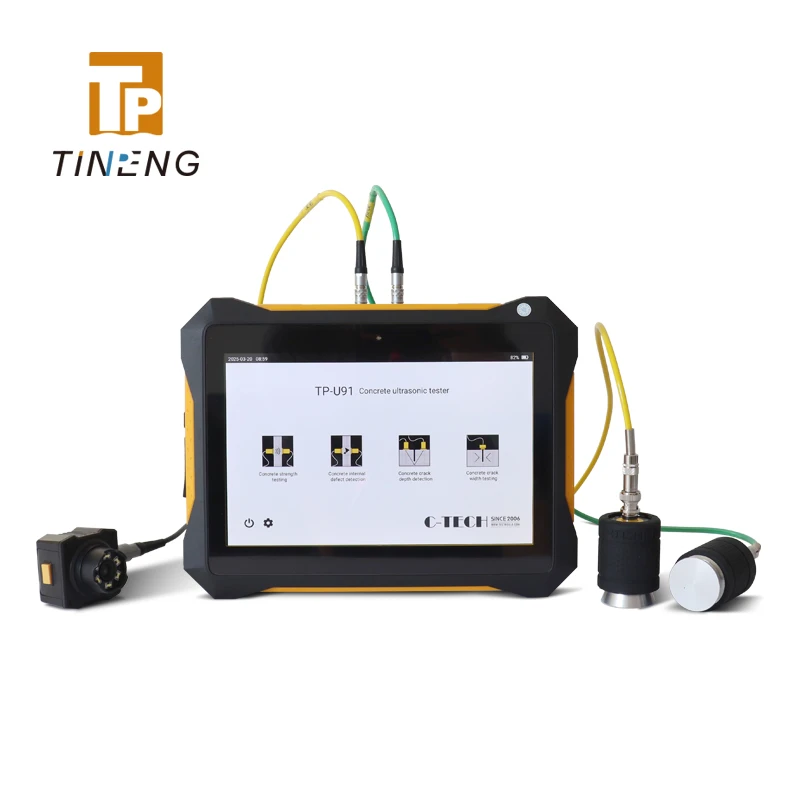

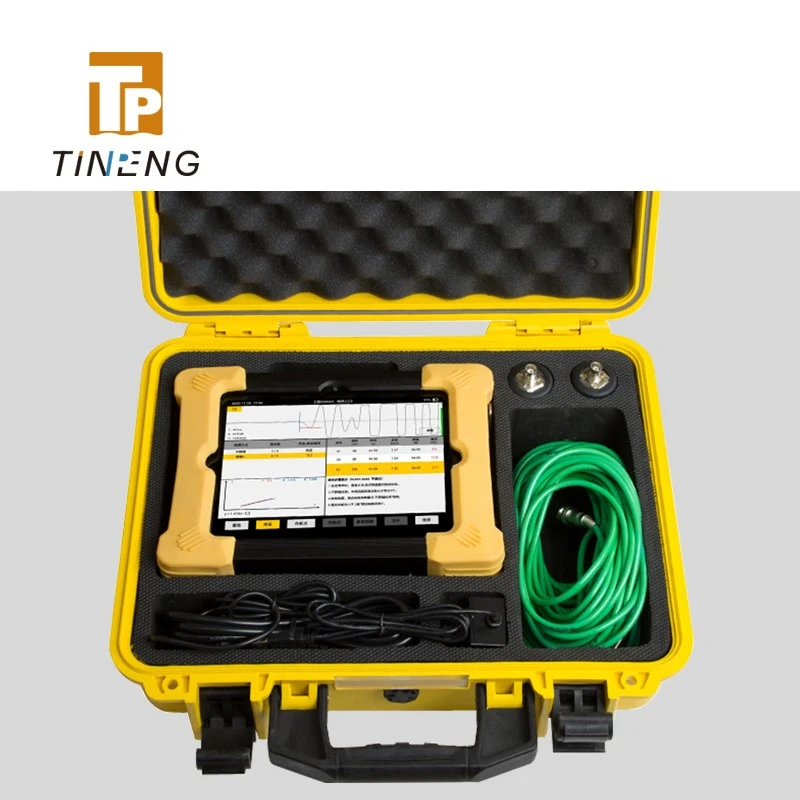

Description of Product
APPLICATIONS
- Evaluate concrete strength by ultrasonic-rebound combined method
- Detect and locate internal defects within concrete structures
- Measure the depth of cracks in concrete
- Determine the width of concrete fissures
| Parameter | TP-U81 | TP-U91 |
|---|---|---|
| Display | 8-inch LCD touch screen (1024*768) | 10.1-inch LCD touch screen (1024*768) |
| Plane transducer | 2 | 2 |
| Trigger | Automatic | Automatic |
| Sampling interval | 0.025μs~2.0μs | 0.025μs~2000μs |
| Sampling length | 1024 | 512~2048 |
| Receiver sensitivity | <10μv | ≤10μv |
| Acoustic time range | 0~99999μs | 0~4000000μs |
| Acoustic time accuracy | 0.05μs | - |
| Amplitude range | 0~170dB | 0~170dB |
| Emission voltage | 500V, 1000V | 125V, 250V, 500V, 1000V optional |
| Emission pulse width | 20μs~20ms | 0.1μs~100μs |
| Depth measurement range | - | 5~500mm |
| Width measurement range | - | 0~10mm |
| Memory | 2G+4G (USB flash) | 16G |
| Battery | Working more than 8 hours | Working more than 8 hours |
| Working temperature | - | -20~+60℃ |
| Size | 25518863mm | 283×216×41 mm |
| Weight | 2.8kg | 1.8kg |
Features
- High-visibility large color LCD touchscreen, readable under various light environments
- Multi-purpose tester supporting concrete strength, crack depth, crack width and internal defect inspection
- Sophisticated algorithm to automatically capture the first arrival time and wave amplitude
- Real-time synchronous display of first arrival time, wave velocity and amplitude values
- Manual adjustment of first arrival time is available to prevent erroneous judgment
- Convenient access, retest and removal of historical measurement records
- Supports on-site real-time data analysis; data can be exported to PC reporting software for further processing
- Complies with and surpasses JGJ and multiple relevant industry standard requirements
