Zhuozhou Tianpeng Imp. and Exp. Trade Co., Ltd. is one of the leading manufacturers and suppliers of rock shear box apparatus in China. With abundant experience, we warmly welcome you to buy customized rock shear box apparatus made in China here from our factory. Quality products and reasonable price are available.
Description of Product
This method permits engineers to collect rock samples from rock outcrops or boreholes, identify the directional attitude of fracture surfaces, and then install and carry out shear tests on these discontinuities inside the shear box.

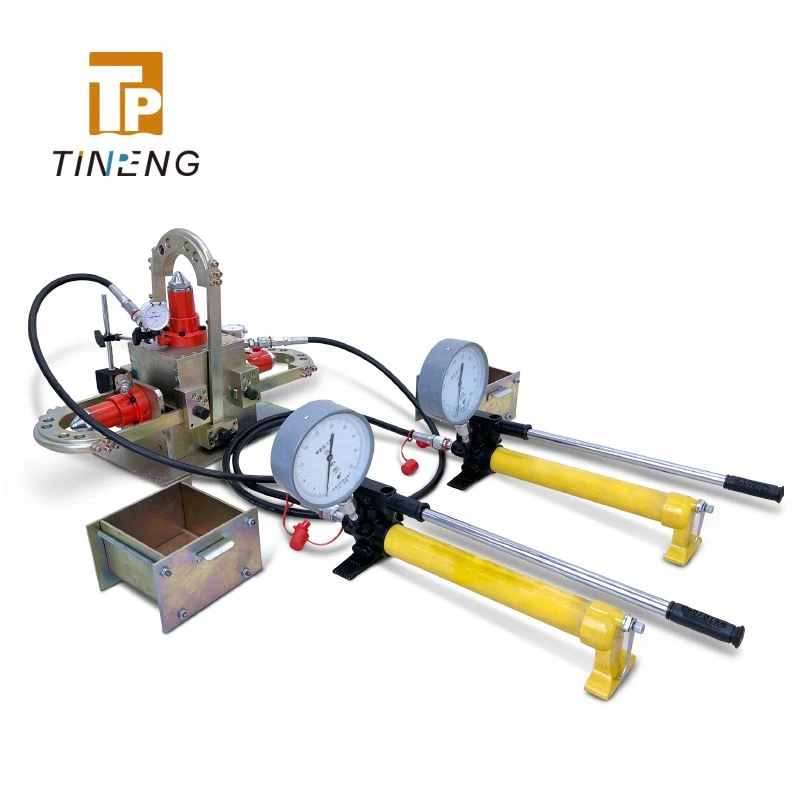

The device features a diagonally split box structure. Its upper section is fitted with a vertical ram to deliver compressive loads, while the lower part is equipped with two horizontal rams to provide bidirectional shearing movement. The loading force generated by the horizontal ram acts along the central axis of the box and aligns with the specimen's discontinuity plane. Hand-driven hydraulic pumps supply pressure to actuate all rams.
Specification
| Item | Specification |
|---|---|
| Dimension of shear box (mm) | 160 × 150 × 200 (L×W×H) |
| Load application | Hydraulic via two single speed hand pump |
| Pressure gauge | 40 Mpa |
| Horizontal displacement | Dial gauge 10 mm travel × 0.01 mm |
| Dimension of package (mm) | 480×730×250 (L×W×H) |
| Total Weight (Kgs) | 120 |
Configuration
TPXJ-1A Main engine 1pc
TPXJ-1B Specimen box 6pcs
TPXJ-1C Hydraulic Pumps 2pcs
TPXJ-1D Pressure gauges 2pcs
TPXJ-1E Dial gauge 2pcs
TPXJ-1F Tools 1set
Documents
