Description of Product

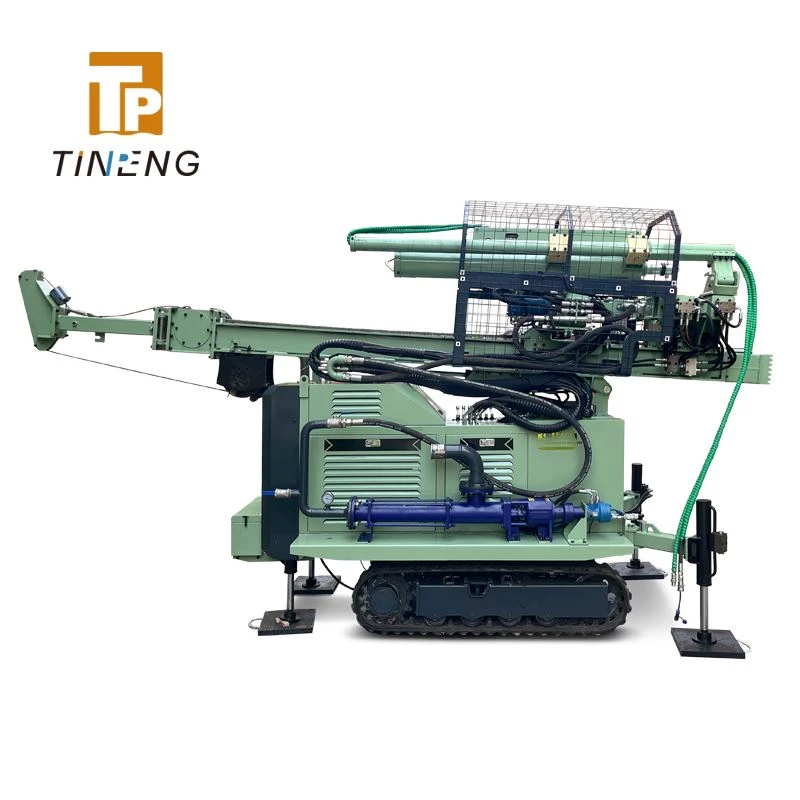

The SPT-LC is a crawler-mounted, self-propelled multipurpose soil investigation rig. It combines rotary and auger drilling functions with standard penetration testing (SPT) capability in a single machine. Lightweight and cost-effective, it delivers fast and economical operation, making it particularly well-suited for environmental soil sampling applications.
Specification
TECHNICAL PARAMETERS
|
Crawler chassis width (retractable) |
Min 790mm, max 1150mm |
|
Crawler chassis length |
1200mm |
|
Rubber crawler width |
180mm |
|
Approach angle |
19° |
|
Departure angle |
21° |
|
Engine |
WEICHAI WP3.2, rated speed 2500rpm, power 36.8Kw |
|
Fuel tank capacity |
45L |
|
Hydraulic oil tank capacity |
120L |
|
Rotary head specifications (4 speed grades) |
1700N.m, 105rpm/660N.m, 268rpm/800N.m, 215rpm/315N.m, 550rpm(1360N.m, 134rpm/530N.m, 344rpm/648N.m, 272rpm/253N.m, 695rpm optional) |
|
Rotary head stroke |
1800mm |
|
Lifting force |
2500N |
|
Drilling force |
2500N |
|
Clamping diameter |
30-170mm |
|
clamping force |
60KN |
|
torsion |
20KN |
|
Total weight |
2500kg |
|
Winch lifting force |
500kg |
|
Water pump flow |
60L/min |
|
SPT system |
drop height 760mm, drop weight 63.5kg |
Features
● Compact design allows transportation in standard vans for easy site-to-site mobility
● Rubber tracks with four-leg stabilizers ensure proper levelling on any terrain
● Rotary head speed can be switched between 4 grades for different drilling requirements
Applications
● Standard penetration test-SPT.
● ● Soil sampling with percussive core barrels.
● ● Rotary drilling, auger drilling.
Accessories
SPT-LC STANDARD DELIVERY
- SPT probe rod
- SPT split sampler
- Other drilling tools can be configured as required
