Zhuozhou Tianpeng Imp. and Exp. Trade Co., Ltd. is one of the leading manufacturers and suppliers of specific gravity frame in China. With abundant experience, we warmly welcome you to buy customized specific gravity frame made in China here from our factory. Quality products and reasonable price are available.
Description of Product

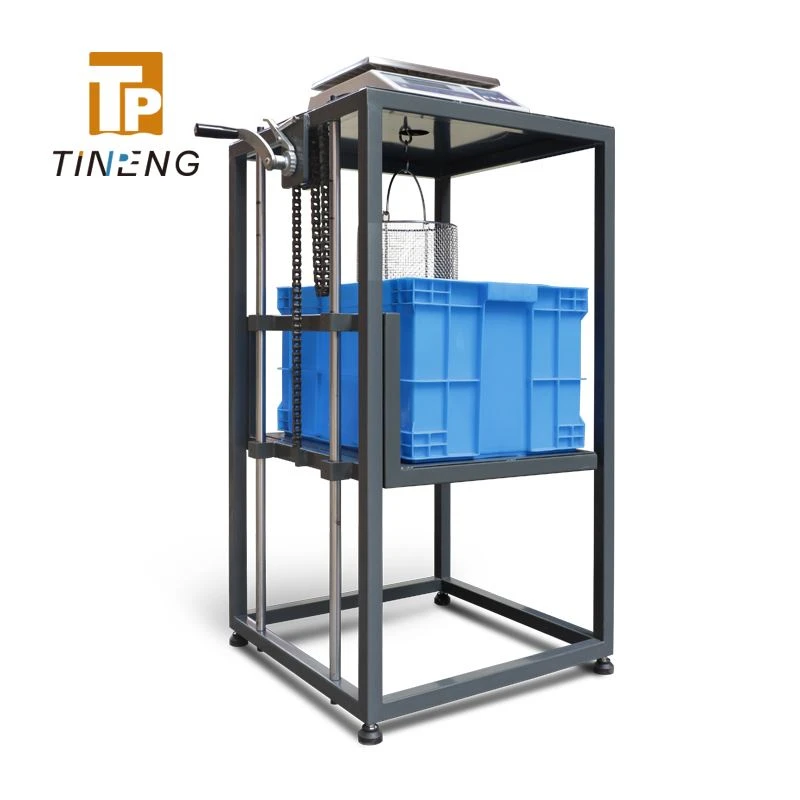

This dedicated heavy-duty frame works alongside a compatible electronic weighing balance to measure the specific gravity of aggregates as well as fresh and hardened concrete samples. Engineered to securely hold the electronic balance, the structure features a movable platform in its lower section. This platform supports the water vessel, enabling specimens to be weighed under two conditions: in air and fully submerged in water.
Please note that the electronic balance is sold separately and not included with this frame. Any electronic scale equipped with an underhook weighing function can be paired with the device. The accessory balance models listed below are the optimal matches for this specific gravity frame.
Standards
- EN 12390-7
Specification
| Parameter | Value |
|---|---|
| Overall dimensions | 620×560×1020 mm |
| Weight approx. | 42 kg |
Accessories
V075-15 Digital top pan balance 15 kg x 1g/0.5g 30kg/0.5g (optional)
V042 Density tank, plastic, 560x420x300 mm
V064 Suspension hook
V041 Stainless steel density basket, dia. 200 mm by 200 mm height, mesh size 3.35 mm, all stainless steel made.
Documents
